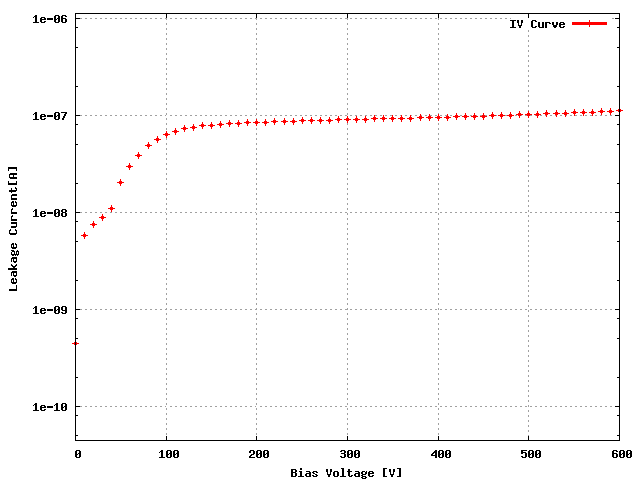

Sensor: S_2x3T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 51A |
| ROC1 | W21_XA4KFIT | 68D |
| ROC2 | W21_XA4KFIT | 68B |
| ROC3 | W21_XA4KFIT | 45D |
| ROC4 | W21_XA4KFIT | 46D |
| ROC5 | W21_XA4KFIT | 47A |
| Ibias_DAC, Ibias_DAC Data | 141 | 136 | 141 | 135 | 149 | 153 |
| Vana, VanaData | 127 | 131 | 111 | 120 | 139 | 141 |
| CalDelData and plots | 78 | 75 | 95 | 93 | 76 | 73 |
| VthrCompData and plots | 77 | 75 | 65 | 66 | 85 | 74 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): All Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 2:02 PM
