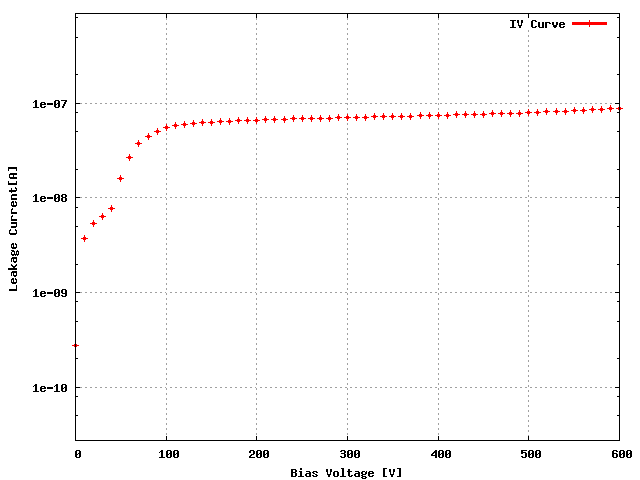

Sensor: S_2x3T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 33A |
| ROC1 | W30_X74K5RT | 32D |
| ROC2 | W30_X74K5RT | 32C |
| ROC3 | W30_X74K5RT | 12D |
| ROC4 | W30_X74K5RT | 13C |
| ROC5 | W30_X74K5RT | 13D |
| Ibias_DAC, Ibias_DAC Data | 128 | 134 | 144 | 138 | 138 | 140 |
| Vana, VanaData | 128 | 129 | 133 | 140 | 140 | 129 |
| CalDelData and plots | 97 | 58 | 87 | 85 | 82 | 77 |
| VthrCompData and plots | 70 | 90 | 65 | 77 | 75 | 79 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:10 PM
