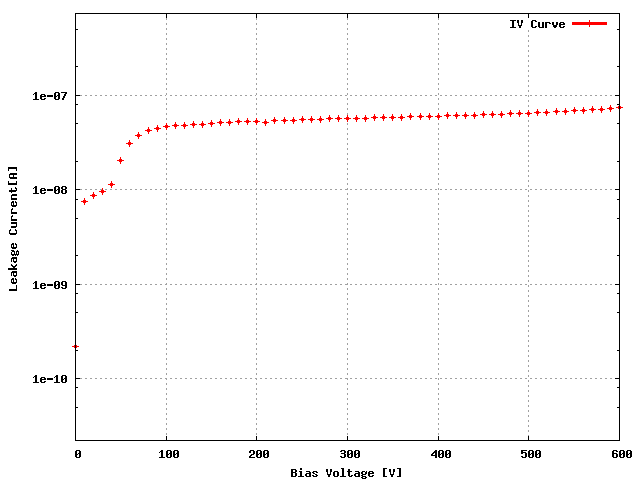

Sensor: S_2x3T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W13_XX4JPAT | 31D |
| ROC1 | W13_XX4JPAT | 31C |
| ROC2 | W13_XX4JPAT | 31B |
| ROC3 | W13_XX4JPAT | 35D |
| ROC4 | W13_XX4JPAT | 36A |
| ROC5 | W13_XX4JPAT | 36B |
| Ibias_DAC, Ibias_DAC Data | 154 | 140 | 150 | 138 | 128 | 148 |
| Vana, VanaData | 137 | 129 | 133 | 140 | 128 | 133 |
| CalDelData and plots | 72 | 77 | 70 | 74 | 92 | 69 |
| VthrCompData and plots | 76 | 75 | 78 | 71 | 67 | 78 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:48 AM
