Sensor: S_2x3T_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W28_X54K5TT | 35D |
ROC1 | W28_X54K5TT | 14C |
ROC2 | W28_X54K5TT | 35A |
ROC3 | W28_X54K5TT | 16A |
ROC4 | W28_X54K5TT | 16B |
ROC5 | W28_X54K5TT | 16D |
Inspected by Arndt Kirk on date 10/24/2007
Picture | Comment |
---|---|
Scratches on sensor as received from BBM vendor IZM (reworked module) between ROC0 and ROC5. |
Ibias_DAC, Ibias_DAC Data | 148 | 146 | 154 | 146 | 144 | 142 |
Vana, VanaData | 145 | 143 | 130 | 134 | 125 | 134 |
CalDelData and plots | 86 | 73 | 71 | 96 | 72 | 92 |
VthrCompData and plots | 86 | 78 | 78 | 71 | 81 | 70 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 2 | 0 | 0 | 28 | 0 | 82 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

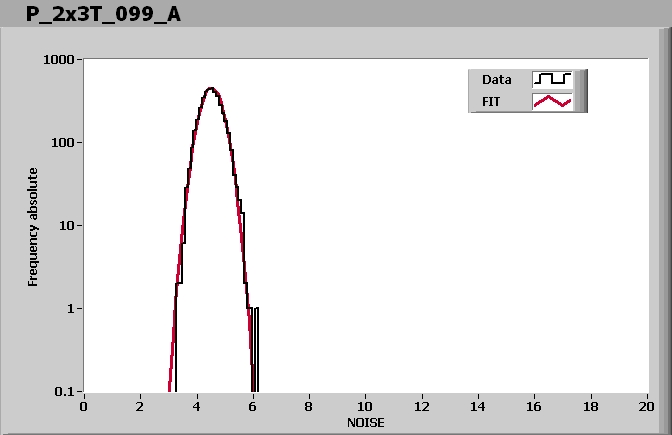

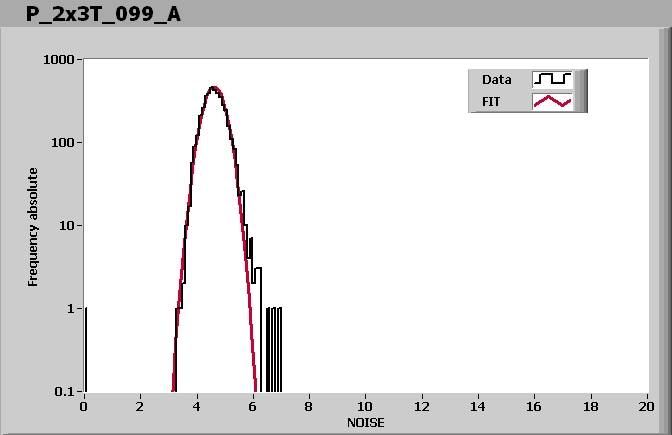

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 90 | 95 | 140 | 100 | 145 | 110 |
Vsf | 145 | 140 | 140 | 135 | 140 | 140 |
VoffsetOp | 100 | 85 | 75 | 75 | 65 | 75 |
VIbias_PH | 105 | 100 | 105 | 105 | 95 | 100 |
Comment (if any): Test D showed too many unbumped pixels on ROC3 and ROC5
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 5:24 PM
