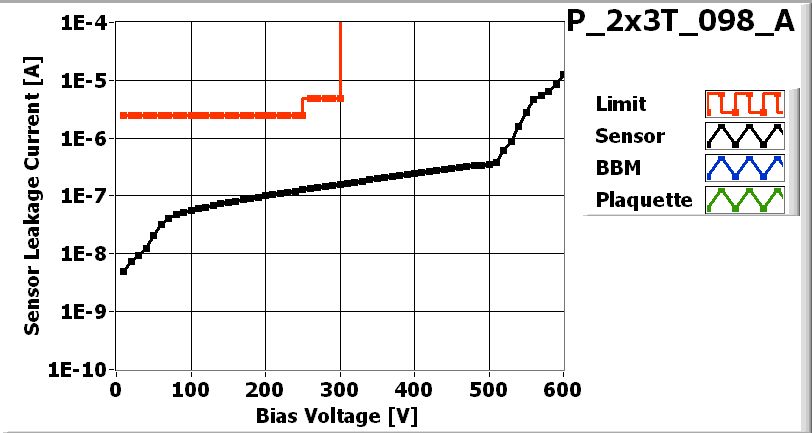

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_098_A_LASER.jpg)

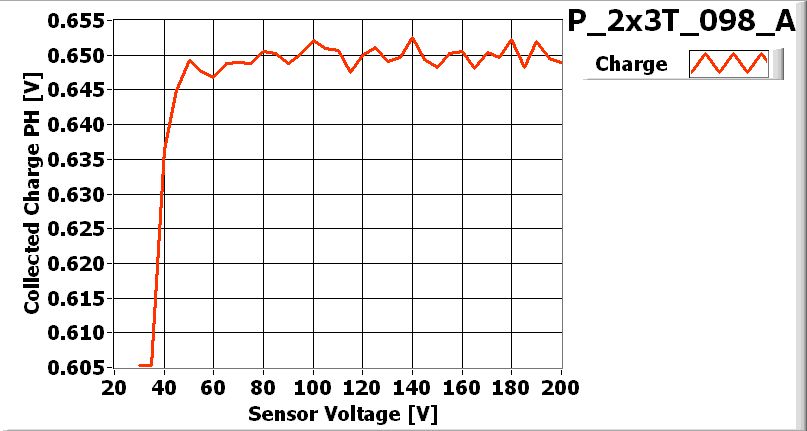

| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_098-2x3T |
| VHDI | 2x3_257 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 14B |
| ROC1 | X74JP0T | 13D |
| ROC2 | X74JP0T | 13C |
| ROC3 | X74JP0T | 20B |
| ROC4 | X74JP0T | 21A |
| ROC5 | X74JP0T | 21D |
Inspected by Arndt Kirk on date 2006-07-11
| LR_dev | 0.047 |
| LL_dev | 0.030 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-11 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-12 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 153 | 154 | 157 | 171 | 161 | 175 | |
| Vana | 121 | 138 | 121 | 130 | 134 | 142 | |
| Cal_Del | 82 | 93 | 91 | 98 | 102 | 84 | |
| Vthrs_Comp | 76 | 79 | 68 | 80 | 82 | 70 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_098_A_Ibias-dac.jpg) |

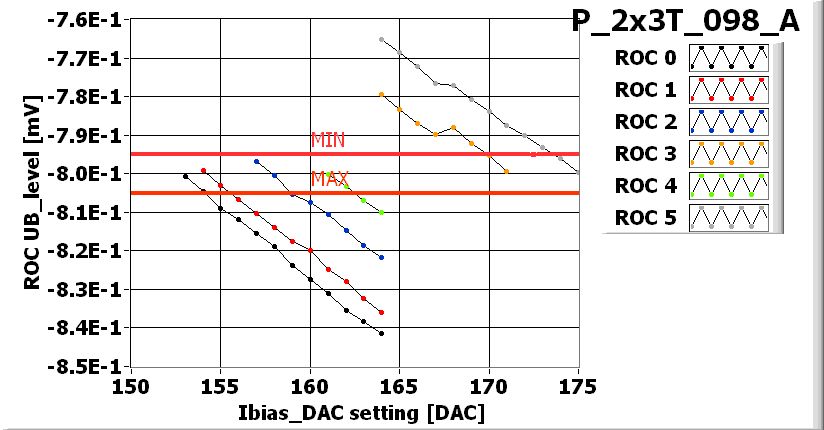

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_098_A_Vana.jpg) |

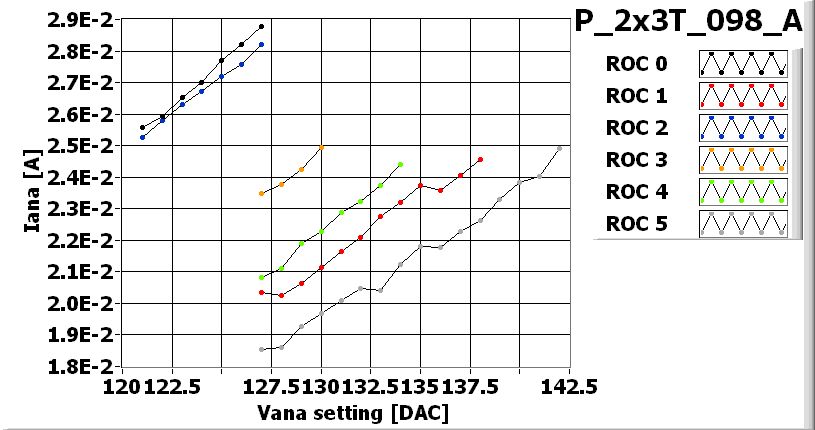

VANA_XML-File |
![[IMAGE] of](P_2x3T_098_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_098_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_098_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_098_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-18
