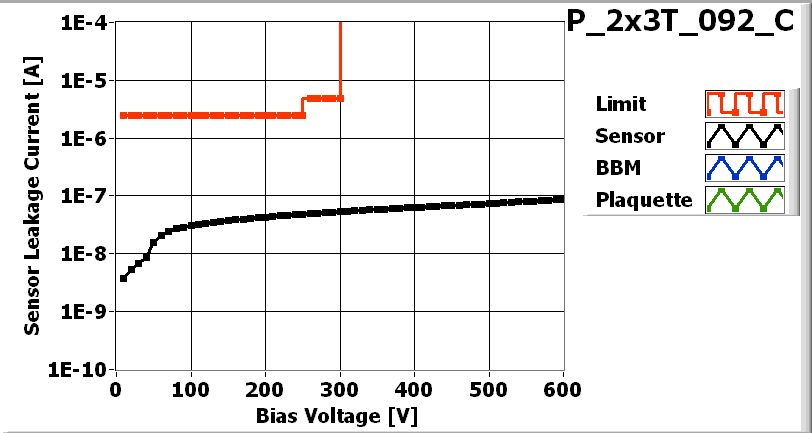

![[IMAGE] of](P_2x3T_092_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_092_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_092-2x3T |
| VHDI | 2x3_358 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 66A |
| ROC1 | XF4K3JT | 65B |
| ROC2 | XF4K3JT | 65A |
| ROC3 | XF4K3JT | 64B |
| ROC4 | XF4K3JT | 64A |
| ROC5 | XF4K3JT | 63B |
Inspected by Arndt Kirk on date 9/1/2006
| LR_dev | 0.031 |
| LL_dev | 0.015 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 9/1/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-09-08 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 148 | 151 | 138 | 147 | 154 | 163 | |
| Vana | 138 | 125 | 133 | 130 | 114 | 137 | |
| Cal_Del | 93 | 85 | 102 | 90 | 101 | 85 | |
| Vthrs_Comp | 80 | 78 | 71 | 75 | 77 | 82 | |
| Unbumped | 0 | 0 | 0 | 1 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 1 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

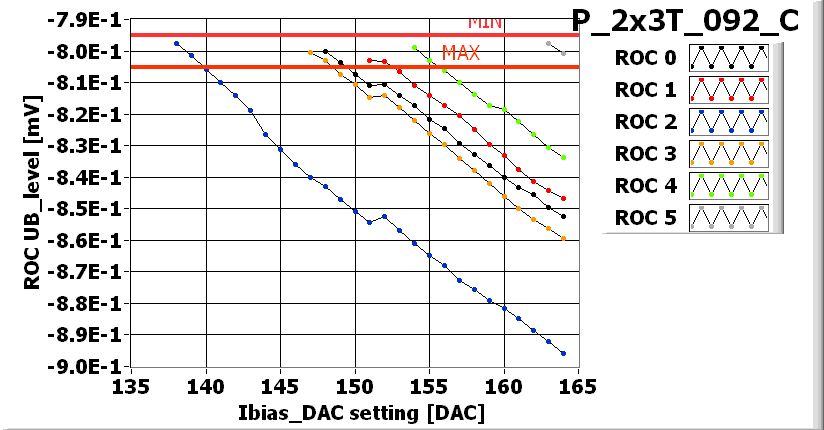

![[IMAGE] of](P_2x3T_092_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

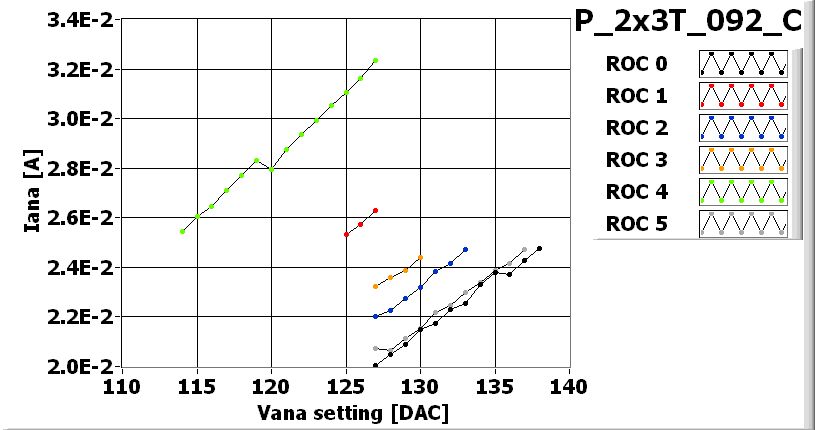

![[IMAGE] of](P_2x3T_092_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_092_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_092_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_092_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_092_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-09-11
