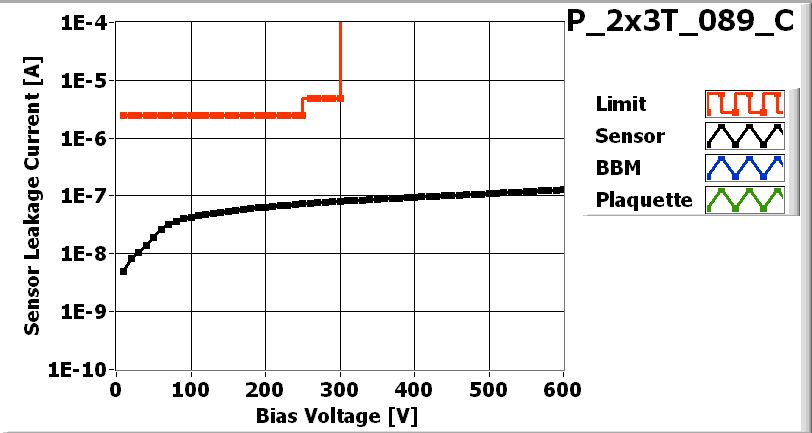

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_089_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_089-2x3T |
| VHDI | 2x3_298 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XI4K3GT | 27B |
| ROC1 | XI4K3GT | 22B |
| ROC2 | XI4K3GT | 22A |
| ROC3 | XI4K3GT | 27C |
| ROC4 | XI4K3GT | 28D |
| ROC5 | XI4K3GT | 20B |
Inspected by Arndt Kirk on date 2006-08-17
| LR_dev | 0.043 |
| LL_dev | 0.040 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-17 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-18 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 149 | 145 | 162 | 139 | 155 | 145 | |
| Vana | 128 | 118 | 128 | 121 | 140 | 107 | |
| Cal_Del | 84 | 85 | 77 | 89 | 72 | 78 | |
| Vthrs_Comp | 70 | 65 | 68 | 60 | 89 | 75 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_089_C_Ibias-dac.jpg) |

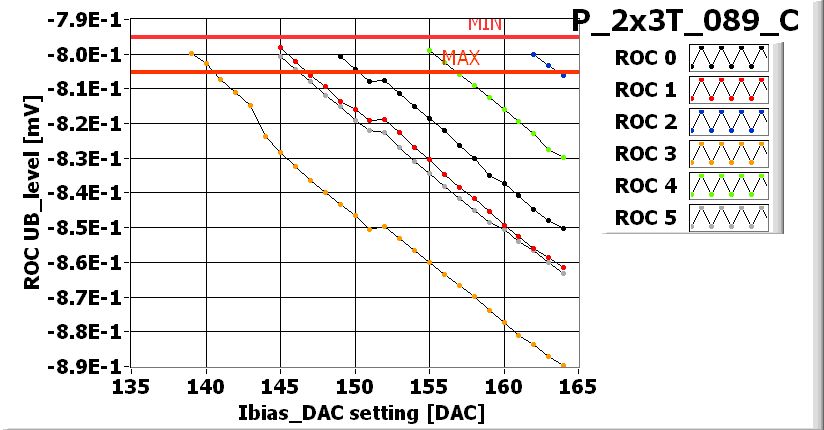

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_089_C_Vana.jpg) |

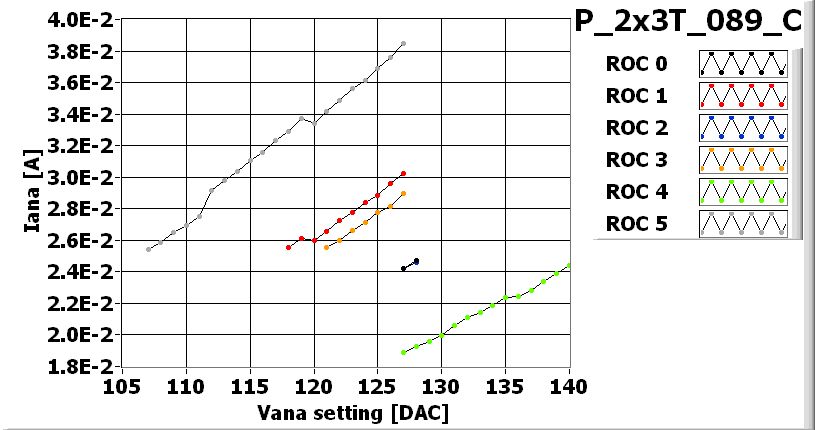

VANA_XML-File |
![[IMAGE] of](P_2x3T_089_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_089_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_089_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_089_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-22
