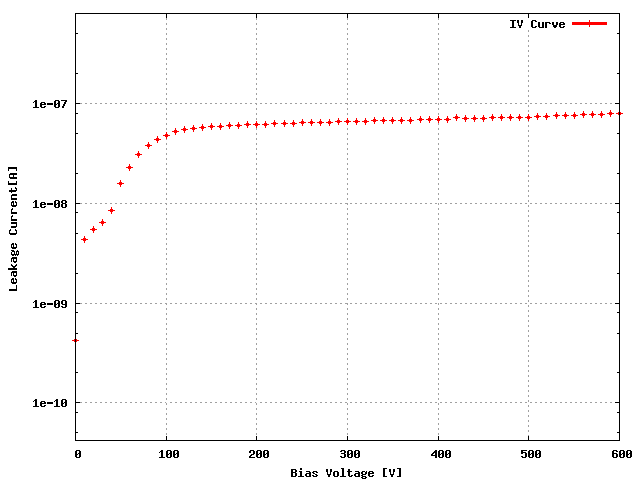

Sensor: S_2x3T_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W20_XP4K3AT | 28C |
| ROC1 | W20_XP4K3AT | 68A |
| ROC2 | W20_XP4K3AT | 27C |
| ROC3 | W20_XP4K3AT | 34A |
| ROC4 | W20_XP4K3AT | 34B |
| ROC5 | W20_XP4K3AT | 34D |
| Ibias_DAC, Ibias_DAC Data | 143 | 121 | 140 | 136 | 137 | 132 |
| Vana, VanaData | 131 | 125 | 126 | 131 | 128 | 143 |
| CalDelData and plots | 88 | 92 | 83 | 89 | 85 | 85 |
| VthrCompData and plots | 79 | 75 | 66 | 69 | 71 | 85 | Depletion Voltage is -42 and suggested operational voltage is -82
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): No problems.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:55 PM
