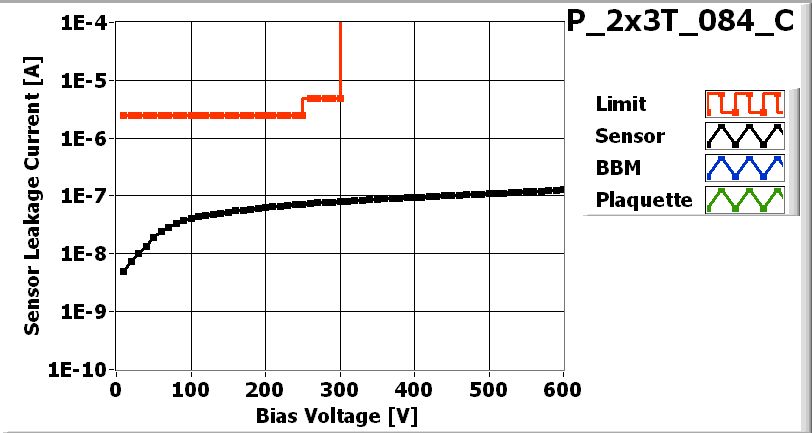

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_084_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_084-2x3T |
| VHDI | 2x3_319 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 11B |
| ROC1 | XK4K3ET | 12A |
| ROC2 | XK4K3ET | 12B |
| ROC3 | XK4K3ET | 15B |
| ROC4 | XK4K3ET | 15A |
| ROC5 | XK4K3ET | 14B |
Inspected by Arndt Kirk on date 2006-08-25
| LR_dev | 0.025 |
| LL_dev | 0.056 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-25 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-28 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 145 | 148 | 163 | 153 | 147 | 159 | |
| Vana | 124 | 122 | 137 | 135 | 124 | 123 | |
| Cal_Del | 105 | 78 | 80 | 71 | 91 | 71 | |
| Vthrs_Comp | 72 | 71 | 83 | 77 | 72 | 69 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | 2 | |
| Dead | 0 | 0 | 0 | 2 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 3 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_084_C_Ibias-dac.jpg) |

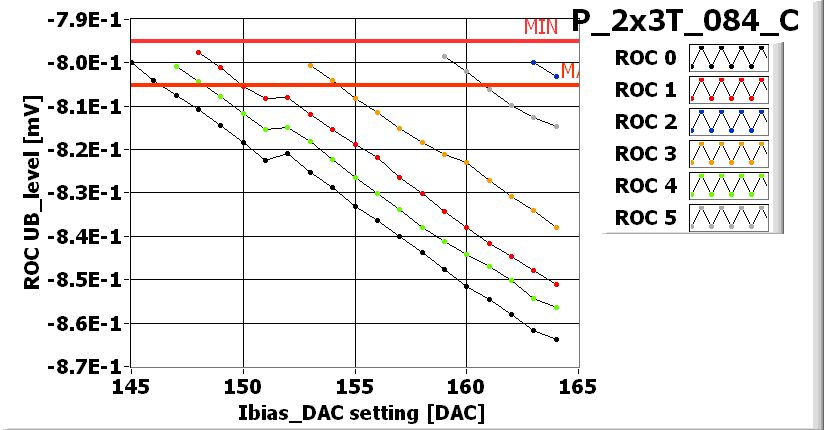

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_084_C_Vana.jpg) |

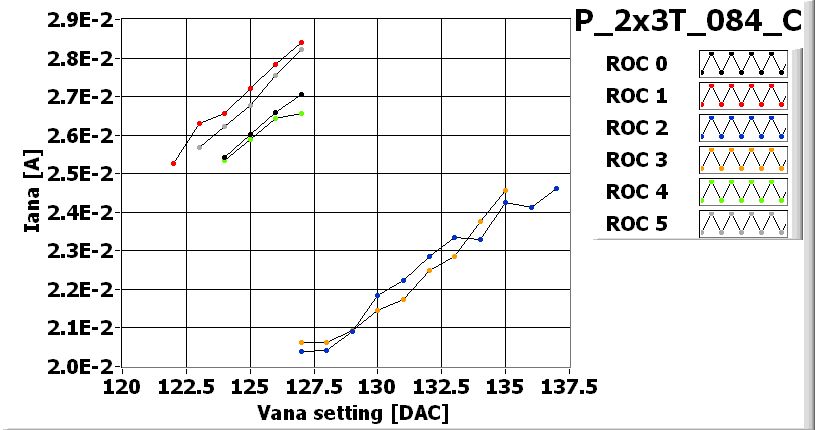

VANA_XML-File |
![[IMAGE] of](P_2x3T_084_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_084_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_084_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_084_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-30
