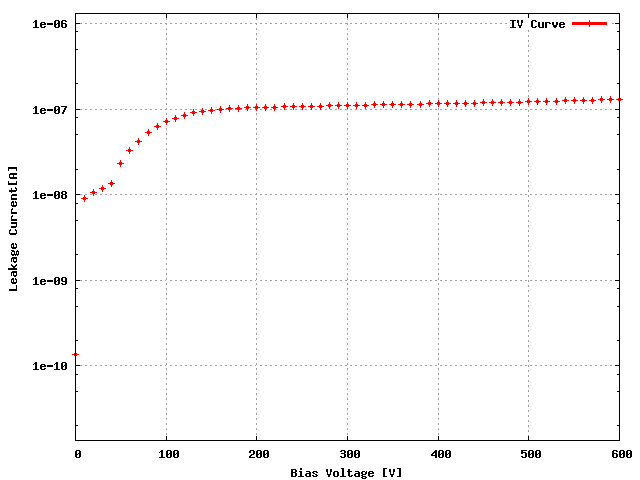

Sensor: S_2x3T_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 75A |
| ROC1 | W32_XA4K5NT | 74D |
| ROC2 | W32_XA4K5NT | 74C |
| ROC3 | W32_XA4K5NT | 44C |
| ROC4 | W32_XA4K5NT | 44D |
| ROC5 | W32_XA4K5NT | 45A |
| Ibias_DAC, Ibias_DAC Data | 144 | 138 | 130 | 140 | 141 | 136 |
| Vana, VanaData | 127 | 128 | 127 | 128 | 143 | 128 |
| CalDelData and plots | 74 | 84 | 86 | 88 | 95 | 85 |
| VthrCompData and plots | 75 | 80 | 76 | 83 | 75 | 74 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:06 AM
