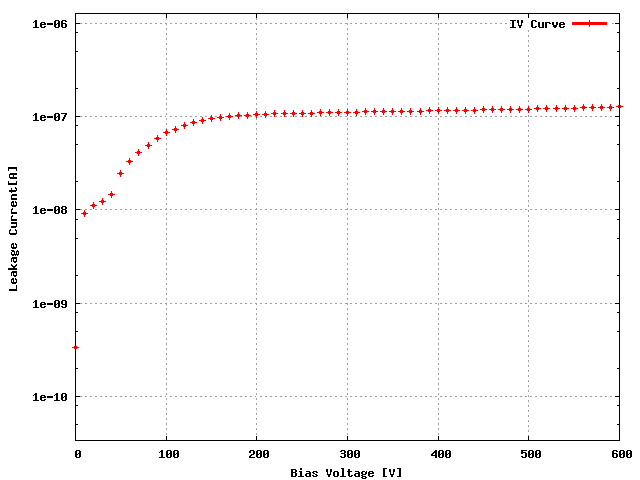

Sensor: S_2x3T_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 26B |
| ROC1 | XF4K3JT | 26A |
| ROC2 | XF4K3JT | 25C |
| ROC3 | XF4K3JT | 11B |
| ROC4 | XF4K3JT | 11C |
| ROC5 | XF4K3JT | 11D |
| Ibias_DAC, Ibias_DAC Data | 135 | 133 | 128 | 130 | 141 | 140 |
| Vana, VanaData | 141 | 127 | 126 | 131 | 129 | 132 |
| CalDelData and plots | 68 | 85 | 87 | 90 | 68 | 69 |
| VthrCompData and plots | 80 | 78 | 73 | 60 | 70 | 71 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:38 AM
