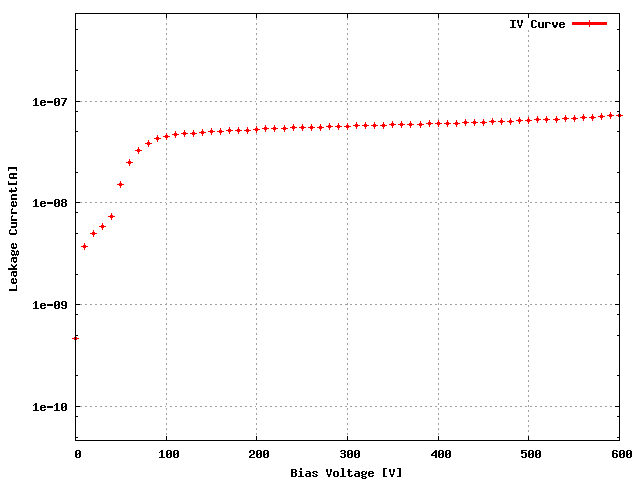

Sensor: S_2x3T_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W31_X44K5UT | 47A |
ROC1 | W31_X44K5UT | 46C |
ROC2 | W31_X44K5UT | 46B |
ROC3 | W31_X44K5UT | 12B |
ROC4 | W31_X44K5UT | 12C |
ROC5 | W31_X44K5UT | 12D |
Ibias_DAC, Ibias_DAC Data | 150 | 142 | 138 | 126 | 142 | 138 |
Vana, VanaData | 147 | 138 | 122 | 137 | 137 | 134 |
CalDelData and plots | 76 | 81 | 86 | 82 | 96 | 91 |
VthrCompData and plots | 89 | 77 | 70 | 74 | 73 | 82 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:15 PM
