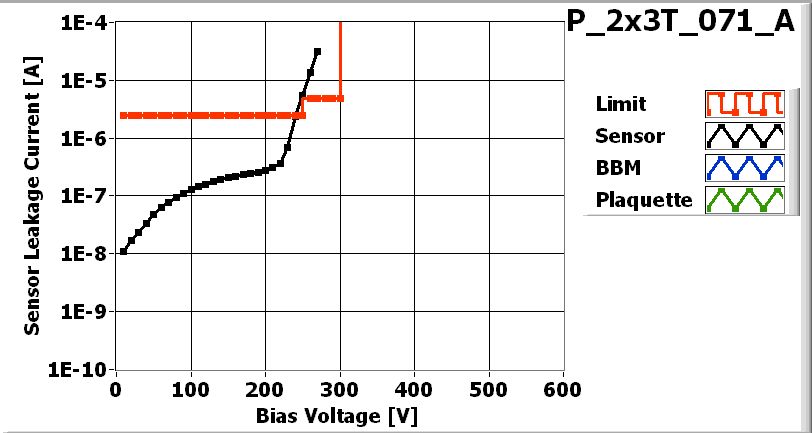

![[IMAGE] of](P_2x3T_071_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 270 V |

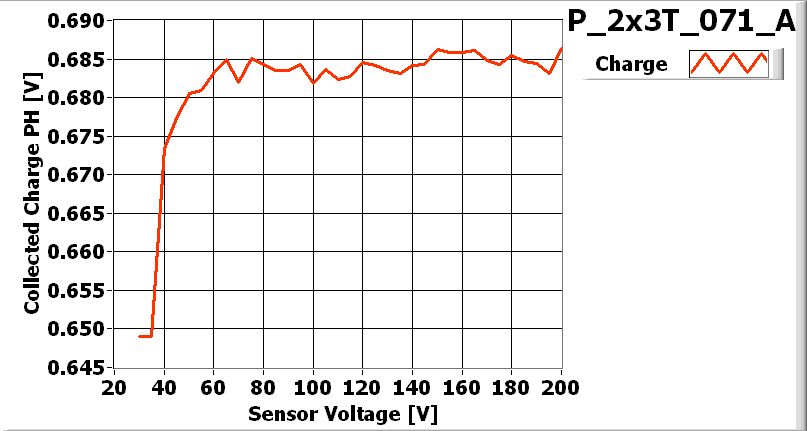

![[IMAGE] of](P_2x3T_071_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_071-2x3T |
| VHDI | 2x3_245 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 15B |
| ROC1 | X14JP6T | 15C |
| ROC2 | X14JP6T | 15D |
| ROC3 | X14JP6T | 27C |
| ROC4 | X14JP6T | 27B |
| ROC5 | X14JP6T | 27A |
Inspected by Arndt Kirk on date 2006-07-03
| LR_dev | 0.015 |
| LL_dev | 0.016 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-03 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-05 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 157 | 156 | 174 | 158 | 156 | 169 | |
| Vana | 131 | 130 | 140 | 134 | 106 | 120 | |
| Cal_Del | 96 | 88 | 77 | 91 | 80 | 81 | |
| Vthrs_Comp | 74 | 70 | 86 | 78 | 69 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 2 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 2 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

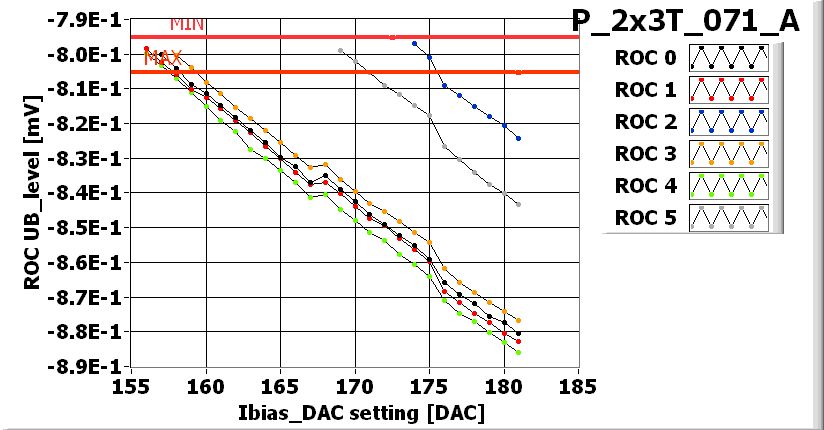

![[IMAGE] of](P_2x3T_071_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

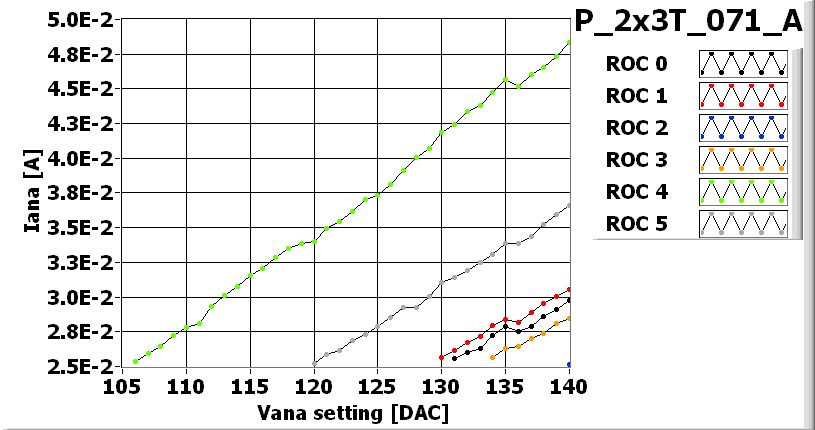

![[IMAGE] of](P_2x3T_071_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_071_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_071_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_071_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_071_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-22
