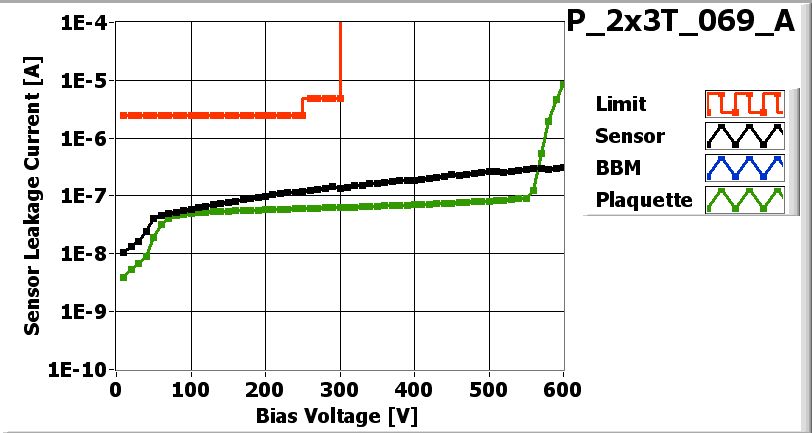

![[IMAGE] of](P_2x3T_069_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_069_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_069-2x3T |
| VHDI | 2x3_753 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 05D |
| ROC1 | W55_D3LQE4T | 05C |
| ROC2 | W55_D3LQE4T | 05B |
| ROC3 | W52_D0LQC8T | 11C |
| ROC4 | W52_D0LQC8T | 11D |
| ROC5 | W52_D0LQC8T | 12A |
Inspected by Lockwood Gale on date 12/3/2007
| LR_dev | 0.056 |
| LL_dev | 0.043 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/3/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi
P_2x3T_069_Aon 12/5/2007 2:56 PM
P_2x3T_069_Aon 12/5/2007 2:56 PM
PLAQUETTE TESTED on 2007-12-05 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 158 | 146 | 148 | 148 | 162 | |
| Vana | 144 | 137 | 149 | 144 | 127 | 137 | |
| Cal_Del | 92 | 100 | 101 | 96 | 82 | 95 | |
| Vthrs_Comp | 83 | 75 | 82 | 78 | 81 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_069_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

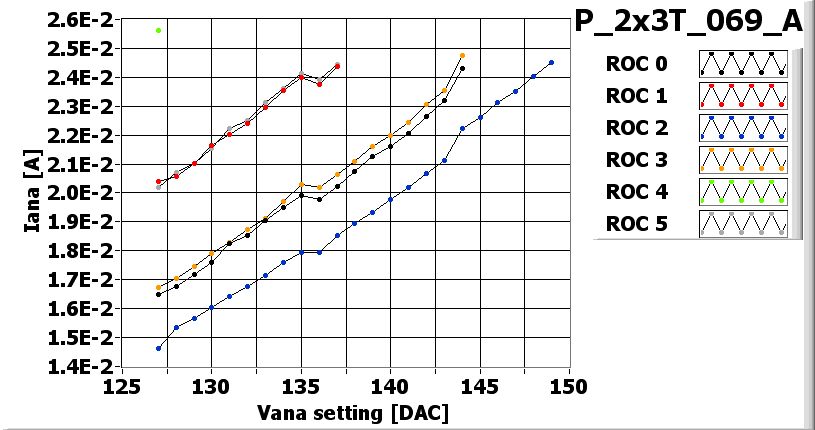

![[IMAGE] of](P_2x3T_069_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_069_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_069_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_069_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_069_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 105 | 95 | 100 | 120 | 110 |
| Vsf | 145 | 140 | 155 | 145 | 140 | 140 |
| VoffsetOp | 90 | 95 | 105 | 90 | 90 | 75 |
| VIbias_PH | 100 | 100 | 95 | 100 | 95 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_069_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_069_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3T_069_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_069_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
