P_2x3T_064

P_2x3T_064_C

Production testing

Date:4/10/2007

Operator: Gino Bolla

start testing time:12:36 PM

Sensor: S_2x3T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XH4KFBT 38B

ROC1 XH4KFBT 37B

ROC2 XH4KFBT 37A

ROC3 XH4KFBT 40C

ROC4 XH4KFBT 40D

ROC5 XH4KFBT 41C

ROC	ROC wafer	Label
ROC0	XH4KFBT	38B
ROC1	XH4KFBT	37B
ROC2	XH4KFBT	37A
ROC3	XH4KFBT	40C
ROC4	XH4KFBT	40D
ROC5	XH4KFBT	41C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 130 132 138 144 130 130

Vana, VanaData 124 132 114 143 135 127

CalDelData and plots 87 73 90 64 86 100

VthrCompData and plots 76 80 78 88 71 64

TestDdata ,TestD Plots 1 0 0 2 1 3

LightData ,Light Plots 0 0 0 9 1 3

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

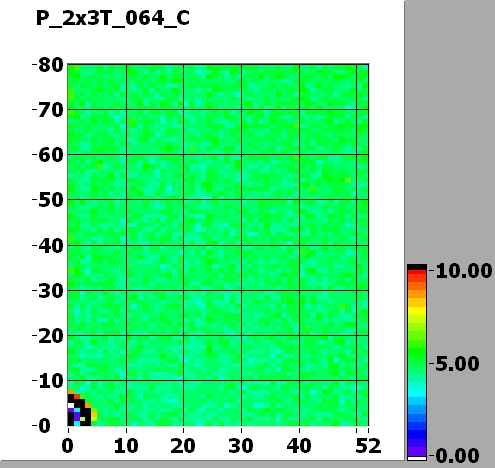

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	155	140	165	110	105	115
Vsf	140	140	135	140	145	140
VoffsetOp	75	85	60	100	65	85
VIbias_PH	100	95	100	100	105	100

ROC0 NOISE			MEAN = 4.924755 SIGMA = 0.383315
ROC1 NOISE			MEAN = 4.642722 SIGMA = 0.371493
ROC2 NOISE			MEAN = 5.576230 SIGMA = 0.445283

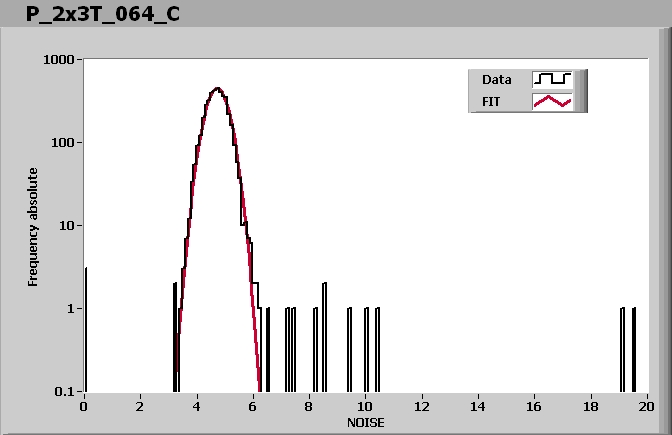

ROC3 NOISE			MEAN = 4.722839 SIGMA = 0.367488
ROC4 NOISE			MEAN = 5.291154 SIGMA = 0.429469
ROC5 NOISE			MEAN = 4.739024 SIGMA = 0.374304

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:54 PM

Ibias_DAC, Ibias_DAC Data	130	132	138	144	130	130
Vana, VanaData	124	132	114	143	135	127
CalDelData and plots	87	73	90	64	86	100
VthrCompData and plots	76	80	78	88	71	64
TestDdata ,TestD Plots	1	0	0	2	1	3
LightData ,Light Plots	0	0	0	9	1	3
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
