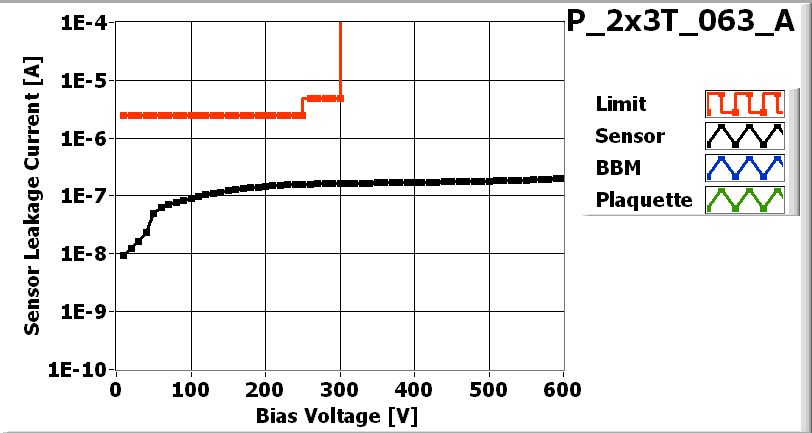

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_063_A_LASER.jpg)

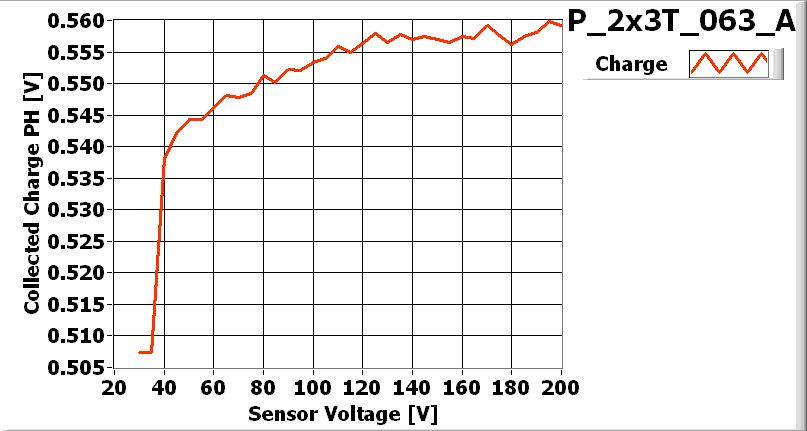

| LASER_XML-File |
| Depletion Voltage 95 V |
| Operational Voltage 145 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_063-2x3T |
| VHDI | 2x3_240 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 23C |
| ROC1 | X14JP6T | 23B |
| ROC2 | X14JP6T | 23A |
| ROC3 | X14JP6T | 11D |
| ROC4 | X14JP6T | 12B |
| ROC5 | X14JP6T | 12C |
Inspected by Arndt Kirk on date 2006-06-16
| LR_dev | 0.047 |
| LL_dev | 0.022 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-16 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-16 by Isaac and Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 151 | 154 | 158 | 158 | 174 | 162 | |
| Vana | 111 | 114 | 124 | 111 | 121 | 120 | |
| Cal_Del | 93 | 107 | 89 | 88 | 92 | 100 | |
| Vthrs_Comp | 66 | 62 | 71 | 78 | 77 | 66 | |
| Unbumped | 4 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 2 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 187 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 193 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

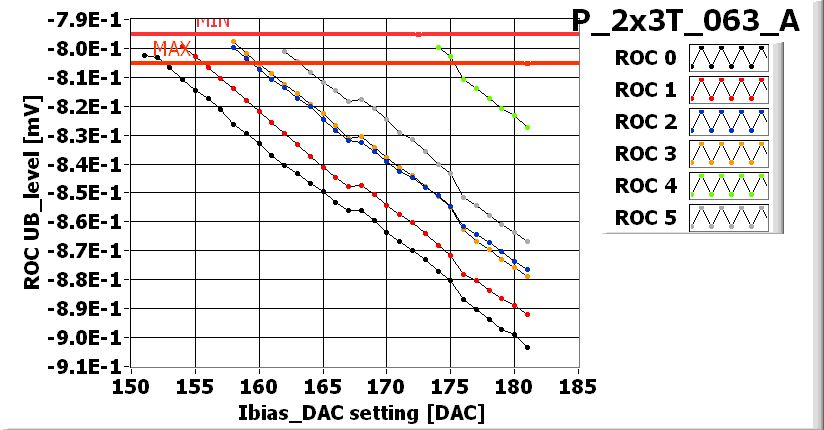

![[IMAGE] of](P_2x3T_063_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

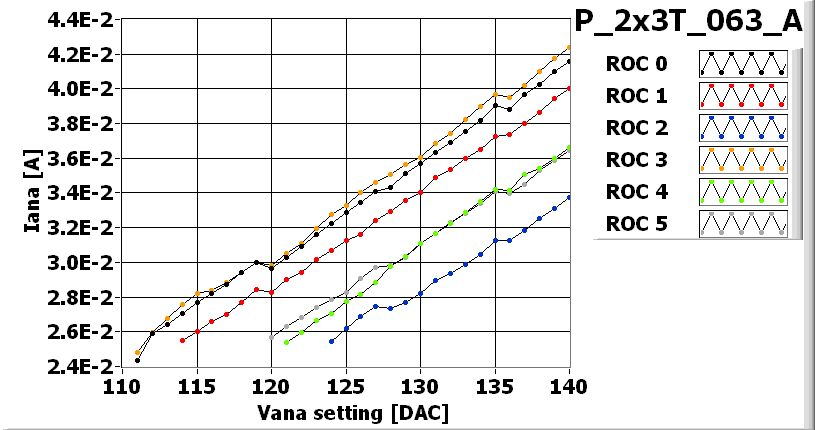

![[IMAGE] of](P_2x3T_063_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_063_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_063_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_063_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_063_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-06-21
