![[IMAGE] of](P_2x3T_042_C_IV.jpg)
| IV_XML-File |

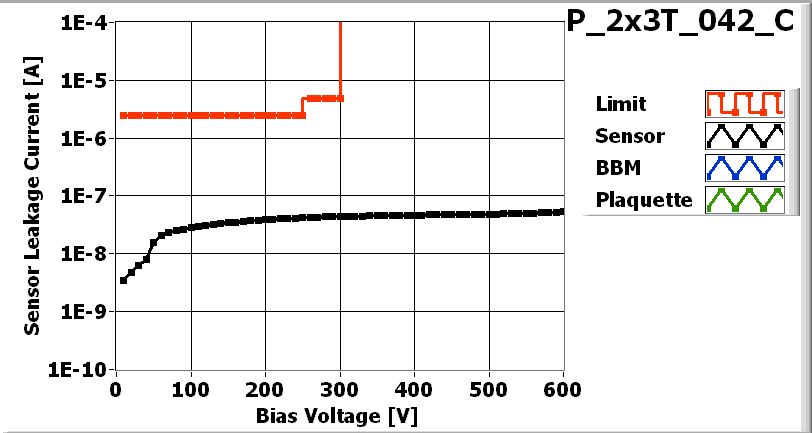

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_042_C_LASER.jpg)
| LASER_XML-File |

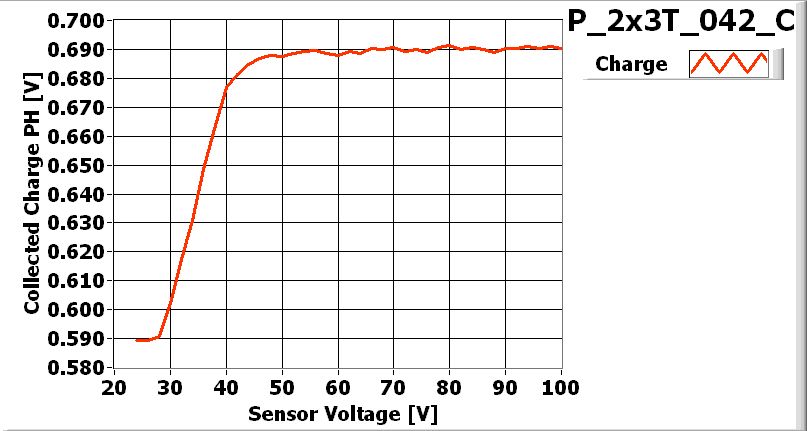

| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_042-2x3T |
| VHDI | 2x3_300 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 46C |
| ROC1 | XK4K3ET | 46D |
| ROC2 | XK4K3ET | 48C |
| ROC3 | XK4K3ET | 47A |
| ROC4 | XK4K3ET | 49B |
| ROC5 | XK4K3ET | 49D |
Inspected by Arndt Kirk on date 2006-08-24
| LR_dev | 0.065 |
| LL_dev | 0.050 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-24 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-25 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 130 | 144 | 161 | 158 | 158 | 157 | |
| Vana | 126 | 130 | 128 | 127 | 134 | 127 | |
| Cal_Del | 96 | 84 | 83 | 68 | 83 | 73 | |
| Vthrs_Comp | 69 | 75 | 69 | 79 | 82 | 88 | |
| Unbumped | 0 | 1 | 1 | 0 | 2 | 10 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 1 | 0 | 2 | 10 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

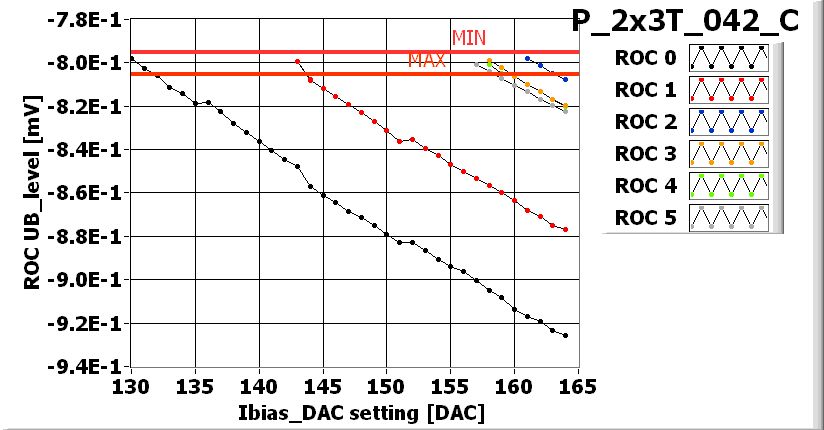

![[IMAGE] of](P_2x3T_042_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

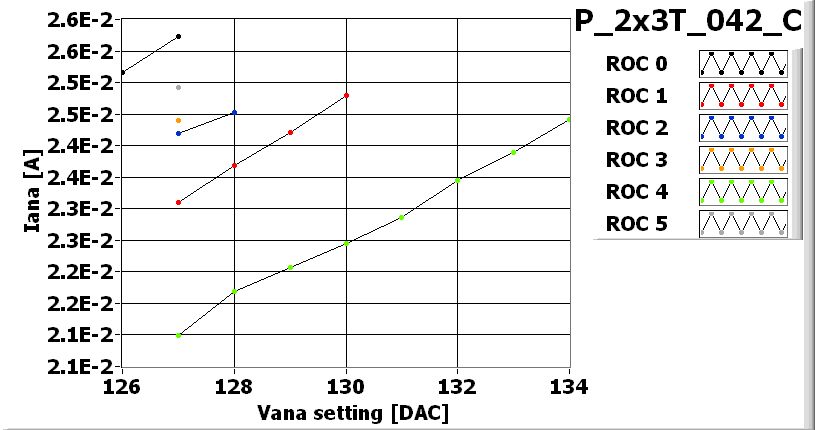

![[IMAGE] of](P_2x3T_042_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_042_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_042_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_042_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_042_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-30
