P_2x3T_039

P_2x3T_039_A

Parts committed by Bolla Gino on date 11/1/2006

Part	ID
BBM	BBM_039-2x3T
VHDI	2x3_314

ROC ROC wafer Label

ROC0 W18_XJ4KT3FT 75C

ROC1 W18_XJ4KT3FT 75B

ROC2 W18_XJ4KT3FT 75A

ROC3 W18_XJ4KT3FT 57D

ROC4 W18_XJ4KT3FT 58A

ROC5 W18_XJ4KT3FT 58B

ROC	ROC wafer	Label
ROC0	W18_XJ4KT3FT	75C
ROC1	W18_XJ4KT3FT	75B
ROC2	W18_XJ4KT3FT	75A
ROC3	W18_XJ4KT3FT	57D
ROC4	W18_XJ4KT3FT	58A
ROC5	W18_XJ4KT3FT	58B

Inspected by Arndt Kirk on date 11/3/2006

LR_dev 0.017

LL_dev 0.042

FINAL COMMENT by Arndt Kirk No assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 11/3/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-03 by Isaac Childres

IV_XML-File

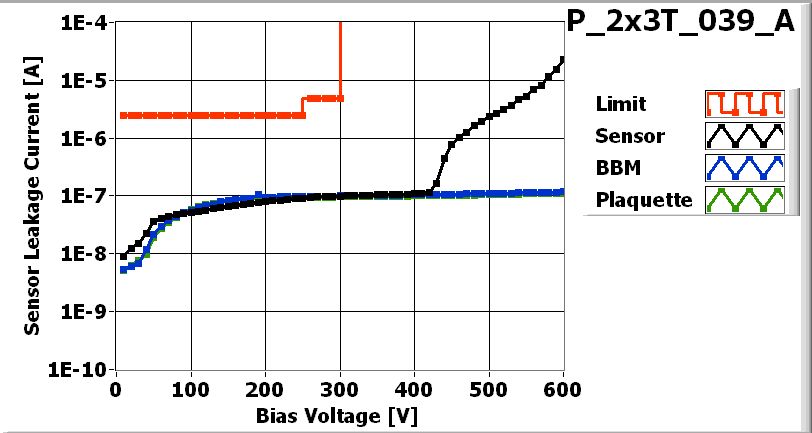

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5

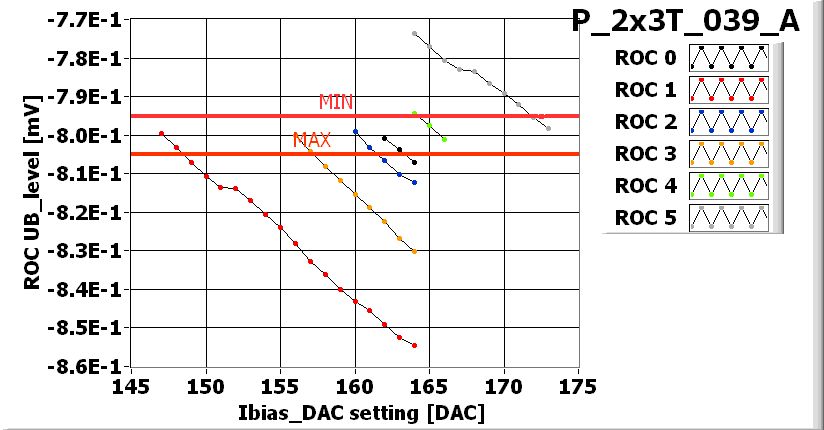

Ibias_DAC	162	147	160	156	166	173

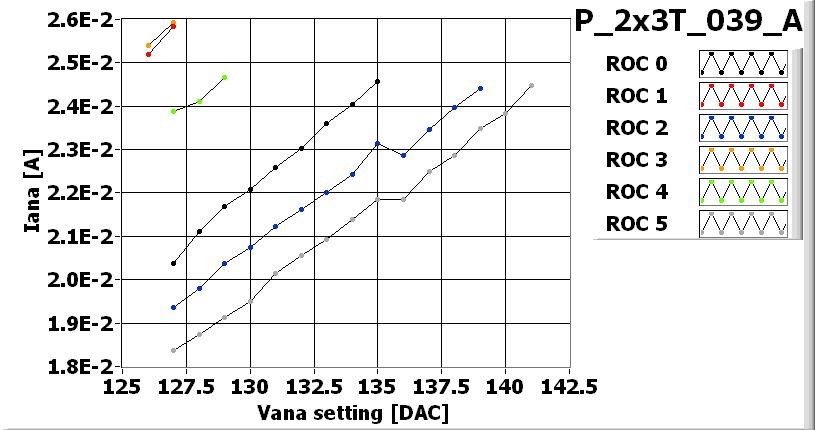

Vana	135	126	139	126	129	141
Cal_Del	78	87	70	102	89	79
Vthrs_Comp	79	67	82	67	83	89
Unbumped	0	0	0	0	0	0
Dead	0	0	0	0	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-03

Plaquette assigned to panel P3R_074
