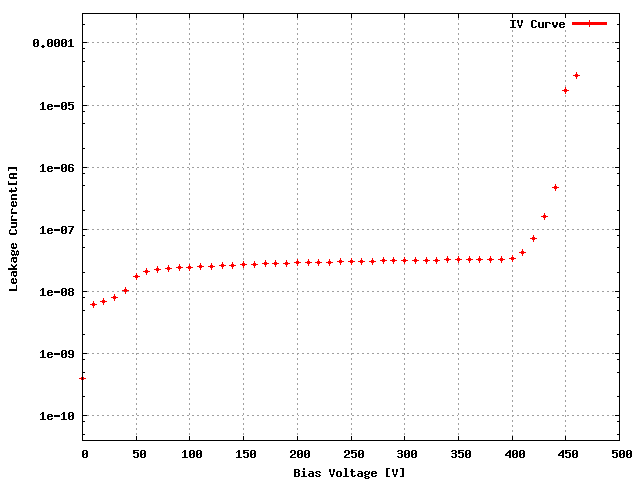

Sensor: S_2x3T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 75C |
| ROC1 | XE4KFET | 73B |
| ROC2 | XE4KFET | 76D |
| ROC3 | XE4KFET | 76B |
| ROC4 | XE4KFET | 65B |
| ROC5 | XE4KFET | 63D |
| Ibias_DAC, Ibias_DAC Data | 140 | 144 | 130 | 146 | 132 | 144 |
| Vana, VanaData | 129 | 133 | 129 | 134 | 122 | 141 |
| CalDelData and plots | 86 | 84 | 85 | 100 | 97 | 84 |
| VthrCompData and plots | 82 | 69 | 76 | 83 | 68 | 82 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 1 | 0 | 20 | 0 | 0 | 1 |
| LightData ,Light Plots | 5 | 0 | 20 | 0 | 0 | 2 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD but a ROC has 20 umbunped channels
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:16 PM
