P_2x3T_035

P_2x3T_035_A

Production testing

Date:11/15/2007

Operator: Ozhan Koybasi

start testing time:5:45 PM

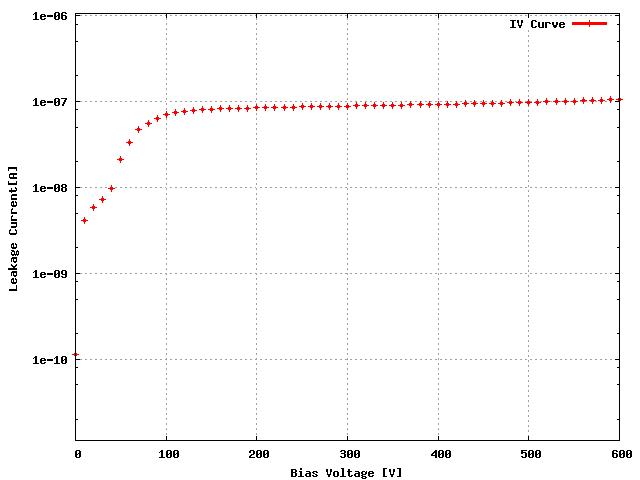

Sensor: S_2x3T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W55_D3LQE4T 54C

ROC1 W55_D3LQE4T 53B

ROC2 W55_D3LQE4T 53A

ROC3 W55_D3LQE4T 35B

ROC4 W55_D3LQE4T 35C

ROC5 W55_D3LQE4T 36A

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	54C
ROC1	W55_D3LQE4T	53B
ROC2	W55_D3LQE4T	53A
ROC3	W55_D3LQE4T	35B
ROC4	W55_D3LQE4T	35C
ROC5	W55_D3LQE4T	36A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 160 168 158 148 146 148

Vana, VanaData 154 153 150 140 150 150

CalDelData and plots 74 73 99 105 71 74

VthrCompData and plots 93 93 88 71 89 84

TestDdata ,TestD Plots 1 0 2 0 0 0

LightData ,Light Plots 1786 2534 1182 276 2109 1603

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT BAD BAD BAD BAD BAD BAD

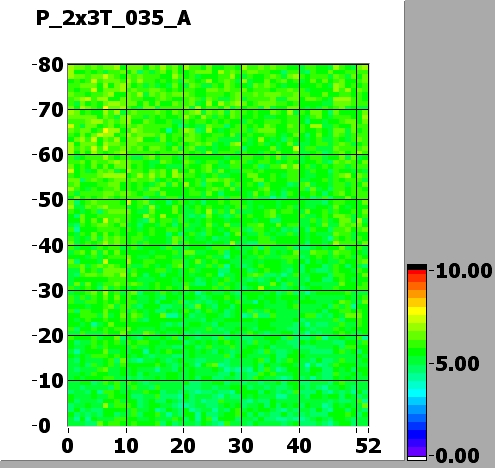

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	105	90	85	100	90
Vsf	155	145	145	145	155	150
VoffsetOp	110	105	100	90	65	110
VIbias_PH	100	100	100	100	105	100

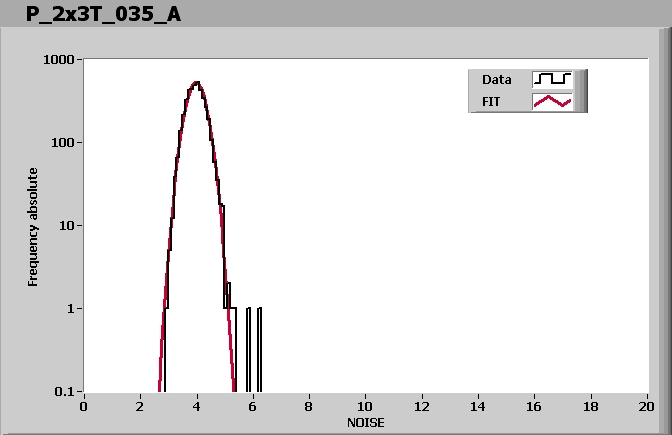

ROC0 NOISE			MEAN = 3.972437 SIGMA = 0.319322

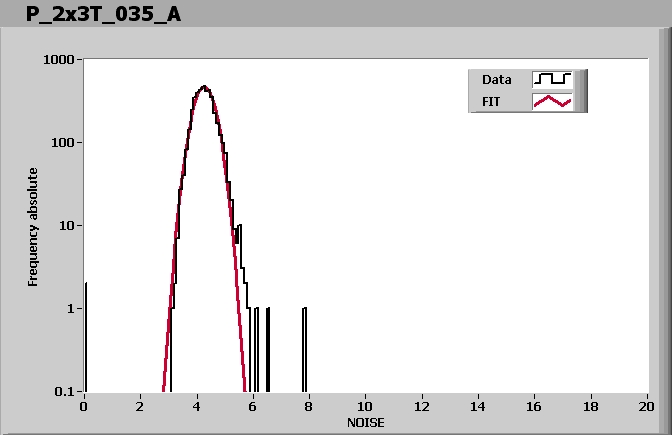

ROC1 NOISE			MEAN = 3.741049 SIGMA = 0.296677
ROC2 NOISE			MEAN = 4.259666 SIGMA = 0.350229

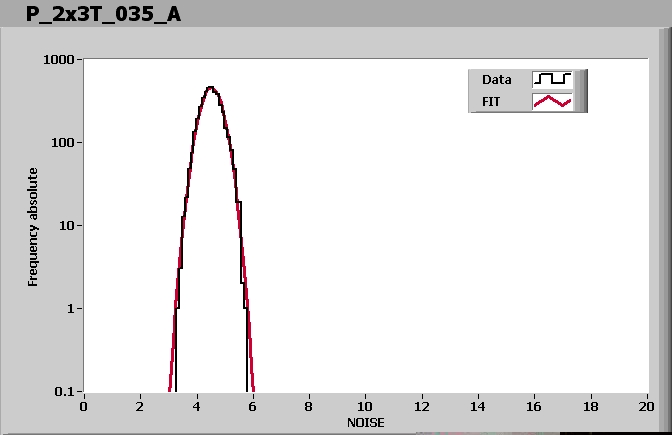

ROC3 NOISE			MEAN = 4.518296 SIGMA = 0.364309

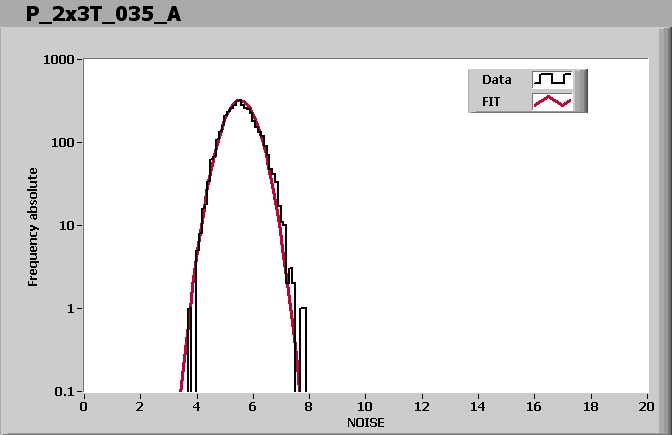

ROC4 NOISE			MEAN = 5.538699 SIGMA = 0.525536

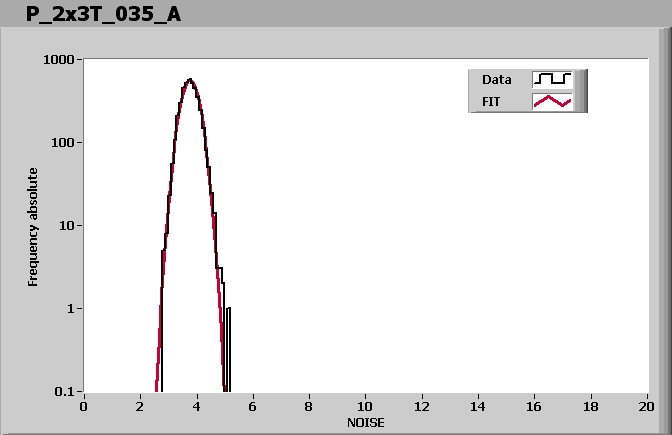

ROC5 NOISE			MEAN = 3.761261 SIGMA = 0.292869

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 6:13 PM

Ibias_DAC, Ibias_DAC Data	160	168	158	148	146	148
Vana, VanaData	154	153	150	140	150	150
CalDelData and plots	74	73	99	105	71	74
VthrCompData and plots	93	93	88	71	89	84
TestDdata ,TestD Plots	1	0	2	0	0	0
LightData ,Light Plots	1786	2534	1182	276	2109	1603
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	BAD	BAD	BAD	BAD	BAD	BAD
