P_2x3T_034

P_2x3T_034_A

Production testing

Date:6/1/2007

Operator: Emily Grace

start testing time:1:50 PM

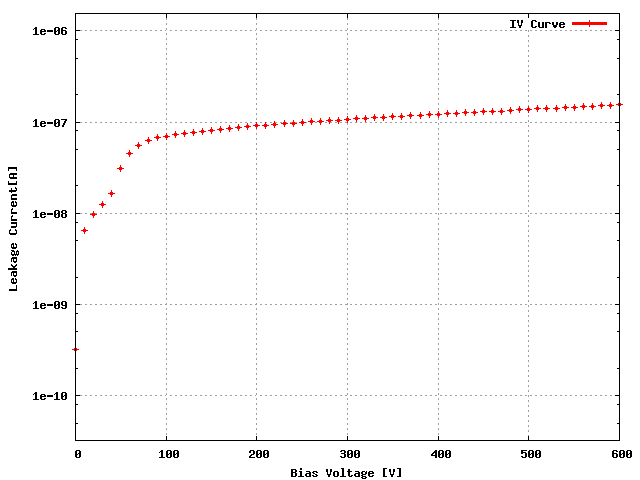

Sensor: S_2x3T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W35_XH4K3HT 17C

ROC1 W35_XH4K3HT 17B

ROC2 W35_XH4K3HT 17A

ROC3 W49_D1LQG5T 28A

ROC4 W49_D1LQG5T 28B

ROC5 W49_D1LQG5T 28C

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	17C
ROC1	W35_XH4K3HT	17B
ROC2	W35_XH4K3HT	17A
ROC3	W49_D1LQG5T	28A
ROC4	W49_D1LQG5T	28B
ROC5	W49_D1LQG5T	28C

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 142 148 144 146 150 142

Vana, VanaData 125 122 118 154 155 139

CalDelData and plots 89 100 101 89 89 90

VthrCompData and plots 70 70 73 90 90 73

TestDdata ,TestD Plots 0 0 0 3 0 2

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

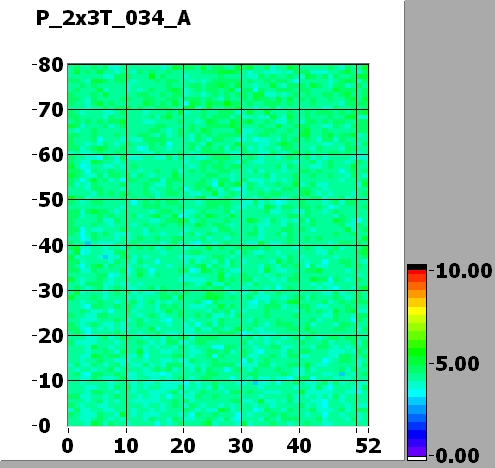

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	135	130	130	95	100	95
Vsf	135	135	130	150	155	140
VoffsetOp	65	60	60	100	105	80
VIbias_PH	95	105	105	95	95	95

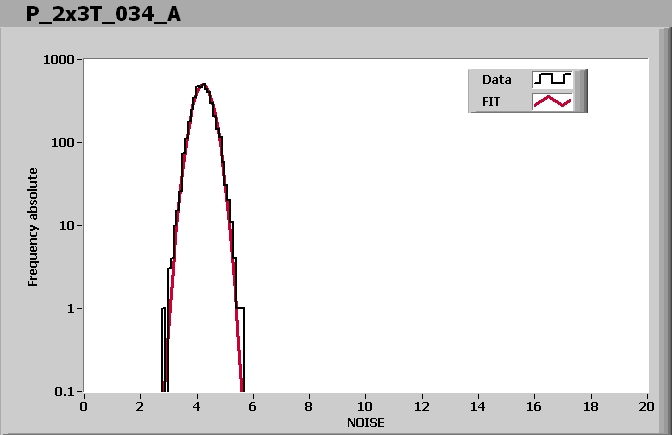

ROC0 NOISE			MEAN = 4.219425 SIGMA = 0.333901

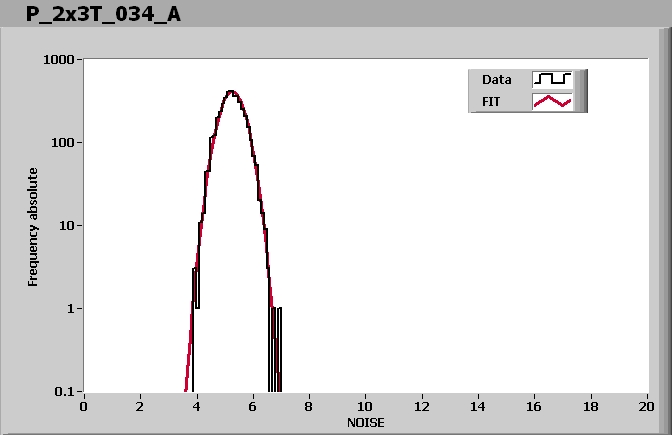

ROC1 NOISE			MEAN = 5.258405 SIGMA = 0.407702

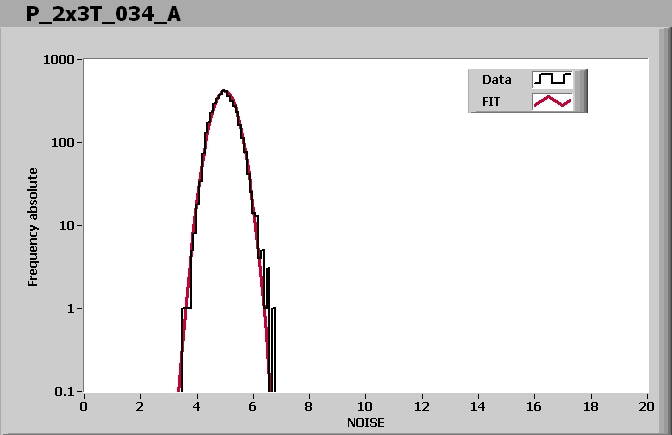

ROC2 NOISE			MEAN = 4.986743 SIGMA = 0.399157

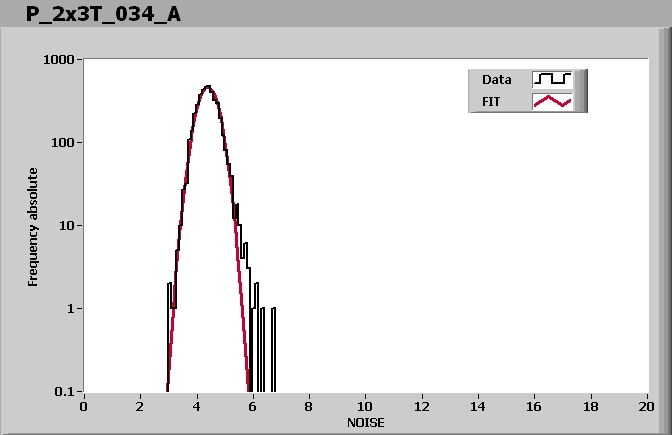

ROC3 NOISE			MEAN = 4.384037 SIGMA = 0.348942
ROC4 NOISE			MEAN = 4.060979 SIGMA = 0.326365
ROC5 NOISE			MEAN = 4.395082 SIGMA = 0.357502

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:15 PM

Ibias_DAC, Ibias_DAC Data	142	148	144	146	150	142
Vana, VanaData	125	122	118	154	155	139
CalDelData and plots	89	100	101	89	89	90
VthrCompData and plots	70	70	73	90	90	73
TestDdata ,TestD Plots	0	0	0	3	0	2
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
