![[IMAGE] of](P_2x3T_026_C_IV.jpg)

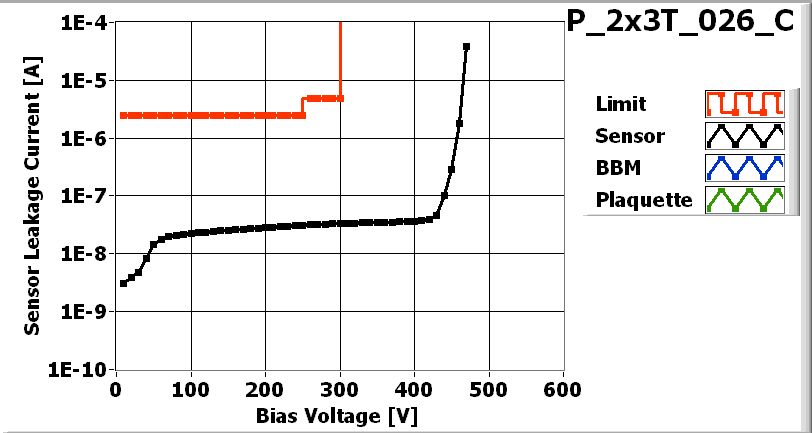

| IV_XML-File |
| Maximum Voltage 470 V |
![[IMAGE] of](P_2x3T_026_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_026-2x3T |
| VHDI | 2x3_315 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 27A |
| ROC1 | XL4K3DT | 27B |
| ROC2 | XL4K3DT | 28B |
| ROC3 | XL4K3DT | 22A |
| ROC4 | XL4K3DT | 21A |
| ROC5 | XL4K3DT | 20B |
Inspected by Arndt Kirk on date 2006-07-27
| LR_dev | 0.036 |
| LL_dev | 0.041 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-31 by Arndt Kirk
PLAQUETTE TESTED on 2006-09-11 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 144 | 144 | 149 | 168 | 138 | 141 | |
| Vana | 129 | 108 | 132 | 149 | 122 | 115 | |
| Cal_Del | 67 | 82 | 95 | 74 | 83 | 89 | |
| Vthrs_Comp | 73 | 70 | 72 | 86 | 77 | 70 | |
| Unbumped | 1 | 290 | 3857 | 93 | 0 | 0 | |
| Dead | 0 | 2 | 6 | 2 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 292 | 3863 | 95 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_026_C_Ibias-dac.jpg) |

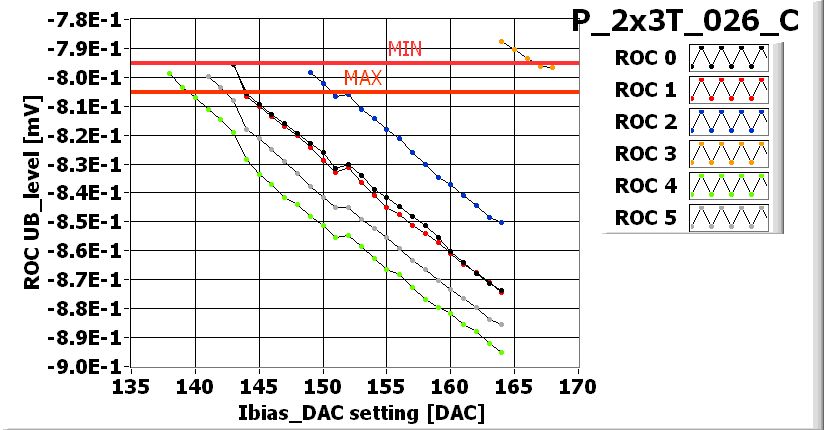

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_026_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_026_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_026_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_026_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_026_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
ROC 1,2 and 3 have many BAD bumpd plaquettes is sent back to RTI for rework
