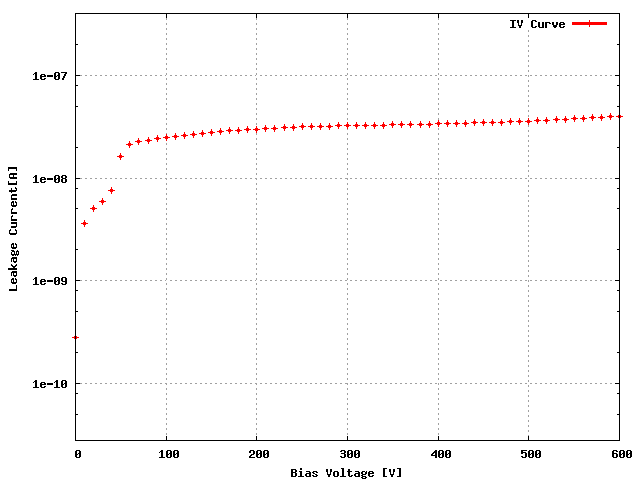

Sensor: S_2x3T_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 24B |
| ROC1 | XE4KFET | 35C |
| ROC2 | XE4KFET | 35D |
| ROC3 | XE4KFET | 30D |
| ROC4 | XE4KFET | 36C |
| ROC5 | XE4KFET | 25C |
| Ibias_DAC, Ibias_DAC Data | 130 | 128 | 142 | 130 | 128 | 130 |
| Vana, VanaData | 122 | 126 | 122 | 122 | 121 | 141 |
| CalDelData and plots | 81 | 91 | 89 | 91 | 88 | 88 |
| VthrCompData and plots | 72 | 77 | 68 | 86 | 78 | 89 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 1 | 0 | 2 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 1 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 2:49 PM
