P_2x3T_016

P_2x3T_016_A

Production testing

Date:5/21/2007

Operator: Emily Grace

start testing time:12:54 PM

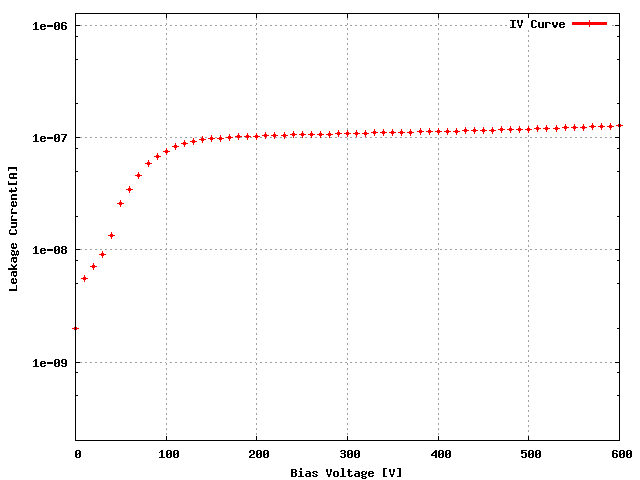

Sensor: S_2x3T_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 44D

ROC1 W49_D1LQG5T 44C

ROC2 W49_D1LQG5T 44B

ROC3 W49_D1LQG5T 61C

ROC4 W49_D1LQG5T 62B

ROC5 W49_D1LQG5T 62C

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	44D
ROC1	W49_D1LQG5T	44C
ROC2	W49_D1LQG5T	44B
ROC3	W49_D1LQG5T	61C
ROC4	W49_D1LQG5T	62B
ROC5	W49_D1LQG5T	62C

Depletion Voltage is -60 and suggested operational voltage is -100

Ibias_DAC, Ibias_DAC Data 144 144 150 156 162 168

Vana, VanaData 154 137 148 144 158 153

CalDelData and plots 93 77 86 95 82 89

VthrCompData and plots 86 90 82 83 91 87

TestDdata ,TestD Plots 2 0 0 0 0 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	100	95	100	105	90
Vsf	155	145	150	145	150	145
VoffsetOp	105	105	115	115	125	130
VIbias_PH	105	100	100	100	100	100

ROC0 NOISE			MEAN = 4.276684 SIGMA = 0.331687
ROC1 NOISE			MEAN = 4.273883 SIGMA = 0.330988

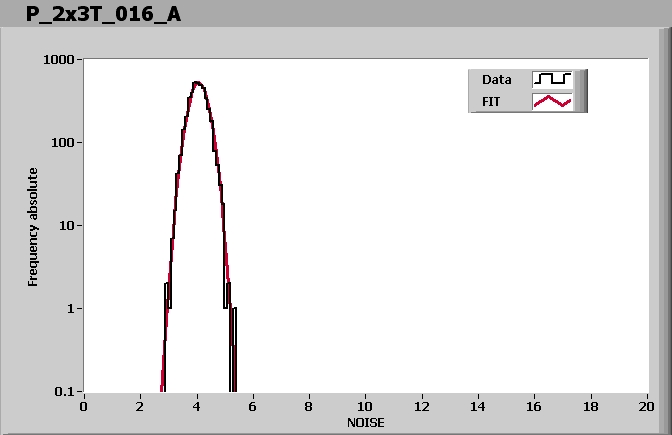

ROC2 NOISE			MEAN = 4.061566 SIGMA = 0.315979

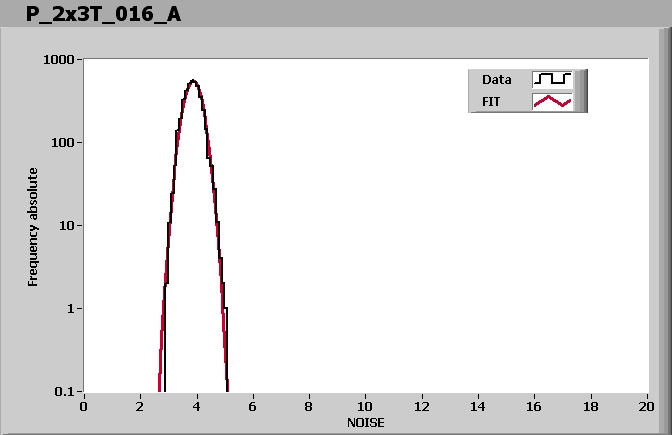

ROC3 NOISE			MEAN = 3.864724 SIGMA = 0.295181
ROC4 NOISE			MEAN = 3.943538 SIGMA = 0.312030

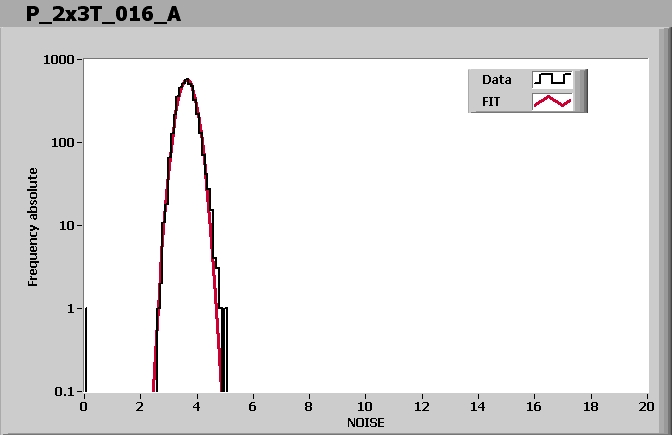

ROC5 NOISE			MEAN = 3.647991 SIGMA = 0.289575

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:18 PM

Ibias_DAC, Ibias_DAC Data	144	144	150	156	162	168
Vana, VanaData	154	137	148	144	158	153
CalDelData and plots	93	77	86	95	82	89
VthrCompData and plots	86	90	82	83	91	87
TestDdata ,TestD Plots	2	0	0	0	0	1
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
