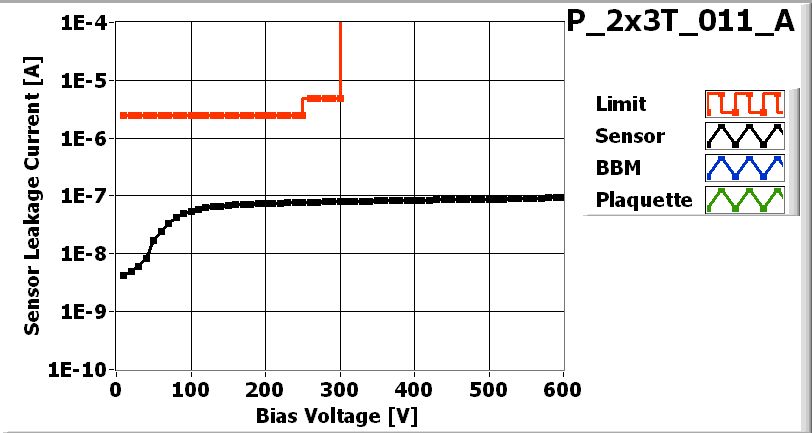

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_011_A_LASER.jpg)

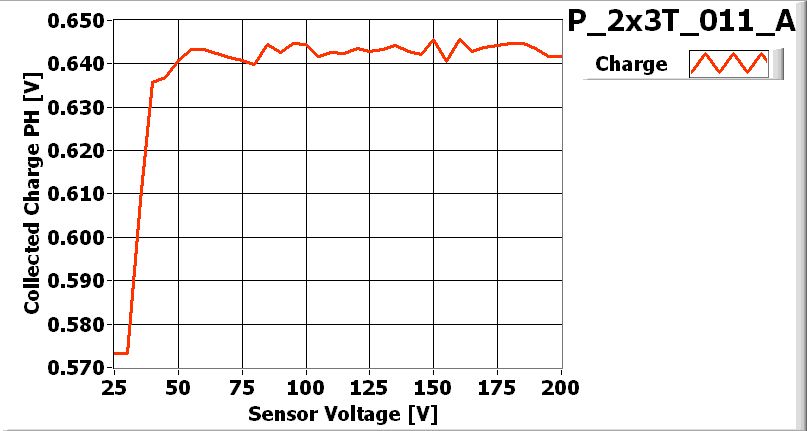

| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_011-2x3T |
| VHDI | 2x3_238 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 65C |
| ROC1 | X14JP6T | 65B |
| ROC2 | X14JP6T | 64B |
| ROC3 | X14JP6T | 32C |
| ROC4 | X14JP6T | 33D |
| ROC5 | X14JP6T | 33A |
Inspected by Arndt Kirk on date 2006-06-14
| LR_dev | 0.073 |
| LL_dev | 0.070 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-14 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-14 by Artur Apresyan
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 167 | 161 | 172 | 176 | 147 | 173 | |
| Vana | 121 | 116 | 137 | 129 | 114 | 124 | |
| Cal_Del | 72 | 72 | 86 | 78 | 90 | 79 | |
| Vthrs_Comp | 70 | 86 | 82 | 85 | 77 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_011_A_Ibias-dac.jpg) |

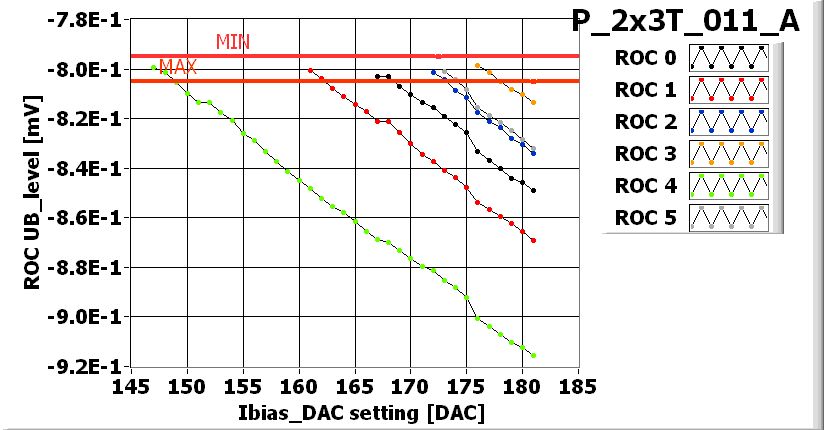

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_011_A_Vana.jpg) |

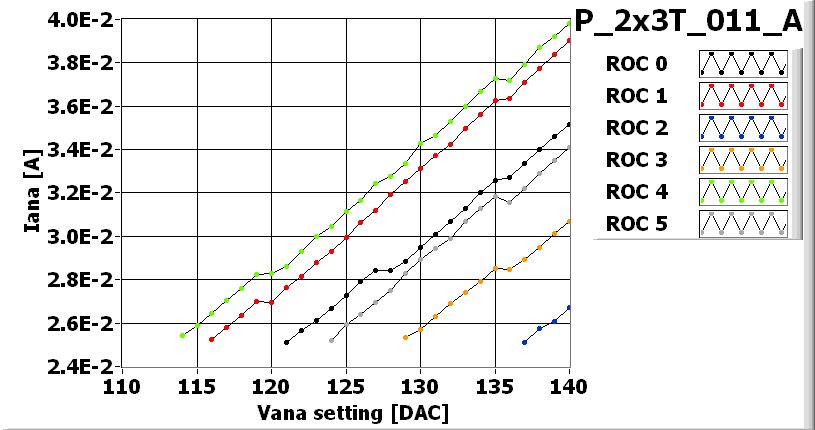

VANA_XML-File |
![[IMAGE] of](P_2x3T_011_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_011_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_011_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_011_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-06-21
