P_2x3T_007

P_2x3T_007_A

Production testing

Date:3/6/2008

Operator: Ozhan Koybasi

start testing time:2:45 PM

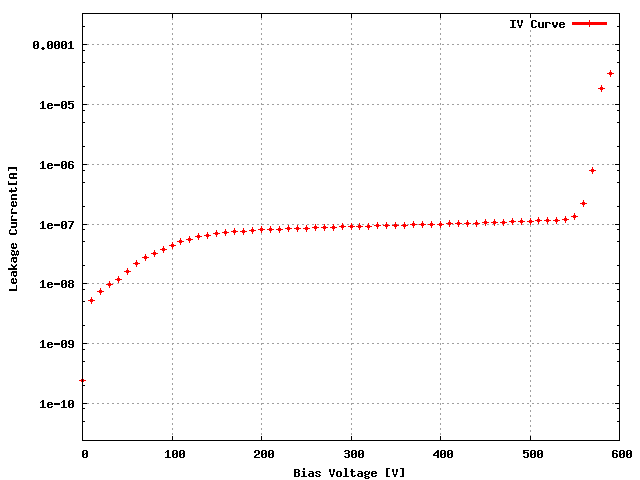

Sensor: S_2x3T_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W53_DXLQY9T 18B

ROC1 W53_DXLQY9T 18A

ROC2 W53_DXLQY9T 17B

ROC3 W55_D3LQE4T 38C

ROC4 W55_D3LQE4T 39A

ROC5 W55_D3LQE4T 39B

ROC	ROC wafer	Label
ROC0	W53_DXLQY9T	18B
ROC1	W53_DXLQY9T	18A
ROC2	W53_DXLQY9T	17B
ROC3	W55_D3LQE4T	38C
ROC4	W55_D3LQE4T	39A
ROC5	W55_D3LQE4T	39B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 154 160 152 158 160 154

Vana, VanaData 144 134 142 130 130 138

CalDelData and plots 92 84 81 97 81 89

VthrCompData and plots 79 87 86 71 91 83

TestDdata ,TestD Plots 3 0 0 2 0 0

LightData ,Light Plots 0 1 32 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

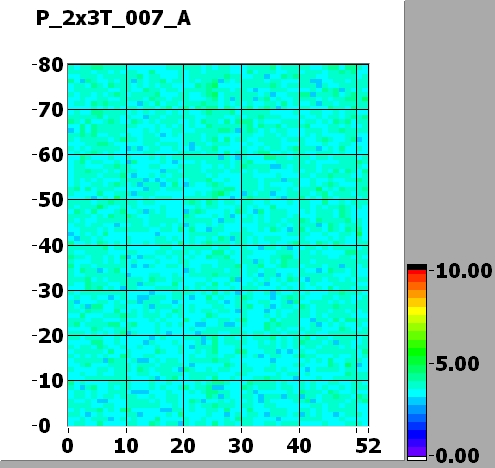

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	105	105	105	115	105
Vsf	145	140	140	140	140	140
VoffsetOp	95	120	100	90	105	100
VIbias_PH	105	100	105	100	100	100

ROC0 NOISE			MEAN = 4.350620 SIGMA = 0.322428

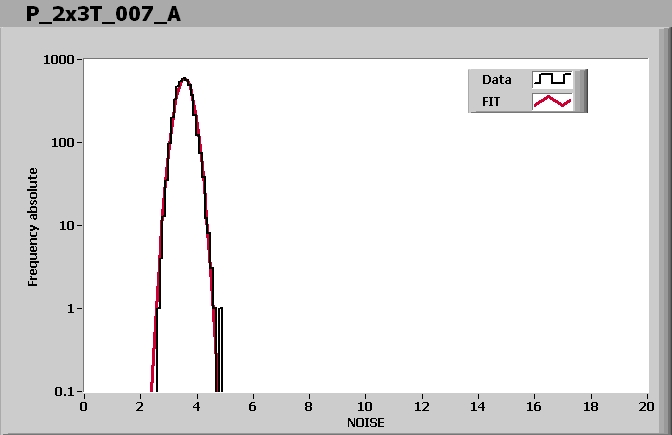

ROC1 NOISE			MEAN = 3.561940 SIGMA = 0.283562
ROC2 NOISE			MEAN = 4.368674 SIGMA = 0.333453

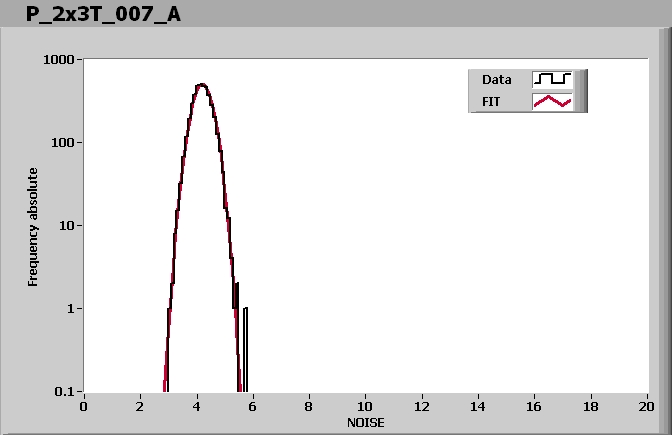

ROC3 NOISE			MEAN = 4.195628 SIGMA = 0.327915
ROC4 NOISE			MEAN = 4.031881 SIGMA = 0.308810

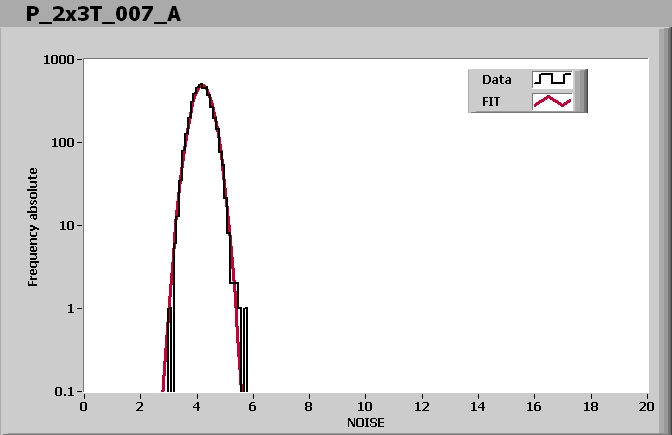

ROC5 NOISE			MEAN = 4.190895 SIGMA = 0.337838

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:21 PM

Ibias_DAC, Ibias_DAC Data	154	160	152	158	160	154
Vana, VanaData	144	134	142	130	130	138
CalDelData and plots	92	84	81	97	81	89
VthrCompData and plots	79	87	86	71	91	83
TestDdata ,TestD Plots	3	0	0	2	0	0
LightData ,Light Plots	0	1	32	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
