P_2x3B_182

P_2x3B_182_A

Production testing

Date:2/16/2007

Operator: Cameron McKinney

start testing time:11:57 AM

Sensor: S_2x3B_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W28_X54K5TT 13A

ROC1 W28_X54K5TT 12D

ROC2 W28_X54K5TT 12C

ROC3 W29_X64K5ST 66C

ROC4 W29_X64K5ST 67B

ROC5 W29_X64K5ST 67C

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	13A
ROC1	W28_X54K5TT	12D
ROC2	W28_X54K5TT	12C
ROC3	W29_X64K5ST	66C
ROC4	W29_X64K5ST	67B
ROC5	W29_X64K5ST	67C

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 142 134 124 144 138 128

Vana, VanaData 124 126 127 132 133 128

CalDelData and plots 82 79 99 80 84 76

VthrCompData and plots 73 67 63 81 70 88

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	140	115	120	115	95	125
Vsf	135	140	140	140	140	140
VoffsetOp	85	85	75	100	115	90
VIbias_PH	105	100	100	100	100	100

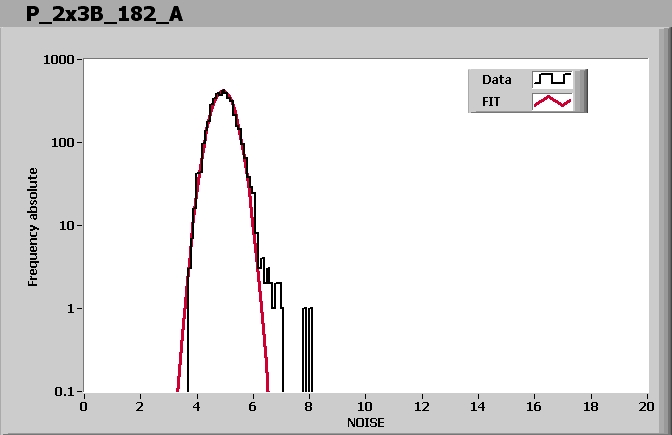

ROC0 NOISE			MEAN = 4.926076 SIGMA = 0.391405
ROC1 NOISE			MEAN = 4.496288 SIGMA = 0.355883
ROC2 NOISE			MEAN = 4.841294 SIGMA = 0.375982

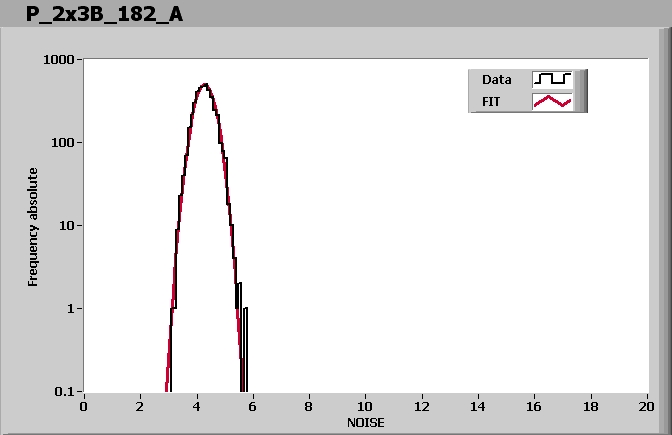

ROC3 NOISE			MEAN = 4.277427 SIGMA = 0.330450
ROC4 NOISE			MEAN = 4.640959 SIGMA = 0.391117
ROC5 NOISE			MEAN = 4.757750 SIGMA = 0.389304

Comment (if any): OK

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:25 PM
