P_2x3B_178

P_2x3B_178_C

Production testing

Date:5/11/2007

Operator: Gino Bolla

start testing time:9:31 AM

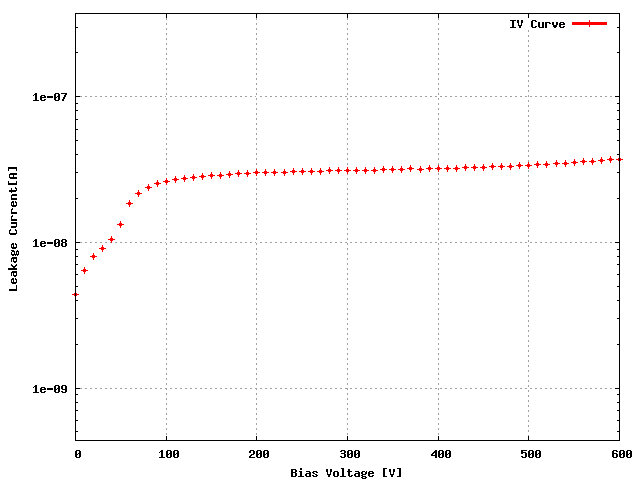

Sensor: S_2x3B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 47C

ROC1 KFNG13T 68C

ROC2 KFNG13T 38D

ROC3 KFNG13T 27A

ROC4 KFNG13T 57C

ROC5 KFNG13T 47A

ROC	ROC wafer	Label
ROC0	KFNG13T	47C
ROC1	KFNG13T	68C
ROC2	KFNG13T	38D
ROC3	KFNG13T	27A
ROC4	KFNG13T	57C
ROC5	KFNG13T	47A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 158 154 148 156 156 144

Vana, VanaData 150 138 137 137 144 127

CalDelData and plots 67 80 77 70 80 84

VthrCompData and plots 94 75 81 88 80 77

TestDdata ,TestD Plots 2 0 0 1 0 2

LightData ,Light Plots 0 1 0 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	100	90	100	90	125
Vsf	145	140	140	140	140	140
VoffsetOp	100	80	105	95	95	65
VIbias_PH	100	95	100	100	105	105

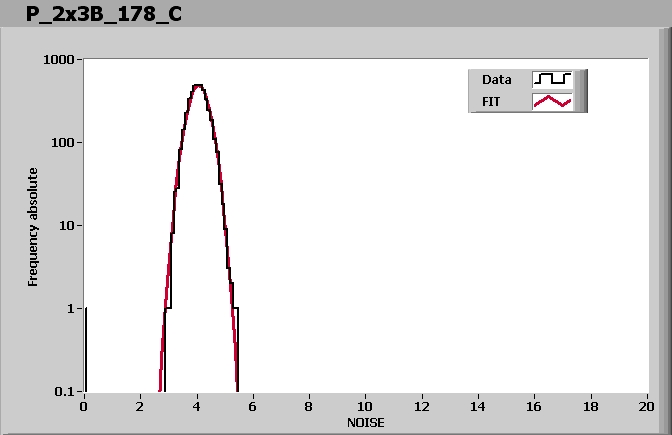

ROC0 NOISE			MEAN = 4.060959 SIGMA = 0.336841
ROC1 NOISE			MEAN = 4.168512 SIGMA = 0.344182
ROC2 NOISE			MEAN = 4.103068 SIGMA = 0.334604

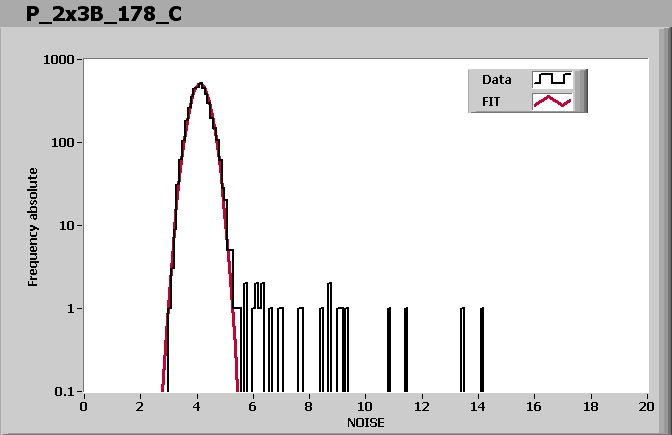

ROC3 NOISE			MEAN = 4.118557 SIGMA = 0.322525

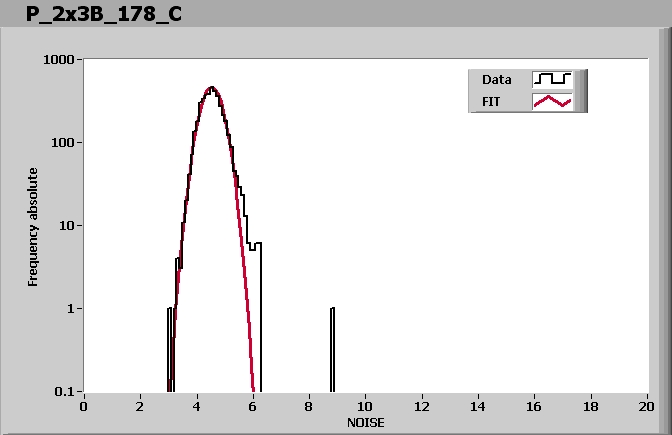

ROC4 NOISE			MEAN = 4.524264 SIGMA = 0.362075
ROC5 NOISE			MEAN = 4.514863 SIGMA = 0.357582

Comment (if any): GOOD

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:49 AM

Ibias_DAC, Ibias_DAC Data	158	154	148	156	156	144
Vana, VanaData	150	138	137	137	144	127
CalDelData and plots	67	80	77	70	80	84
VthrCompData and plots	94	75	81	88	80	77
TestDdata ,TestD Plots	2	0	0	1	0	2
LightData ,Light Plots	0	1	0	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
