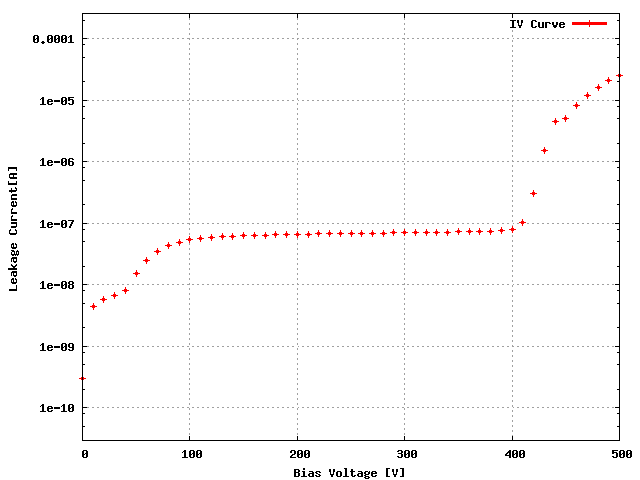

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 36A |
| ROC1 | W21_XA4KFIT | 35D |
| ROC2 | W21_XA4KFIT | 35C |
| ROC3 | W21_XA4KFIT | 17A |
| ROC4 | W21_XA4KFIT | 11C |
| ROC5 | W21_XA4KFIT | 11D |
| Ibias_DAC, Ibias_DAC Data | 126 | 140 | 142 | 114 | 134 | 120 |
| Vana, VanaData | 128 | 120 | 141 | 116 | 135 | 131 |
| CalDelData and plots | 87 | 89 | 80 | 86 | 76 | 84 |
| VthrCompData and plots | 72 | 78 | 72 | 64 | 82 | 76 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 9:25 AM
