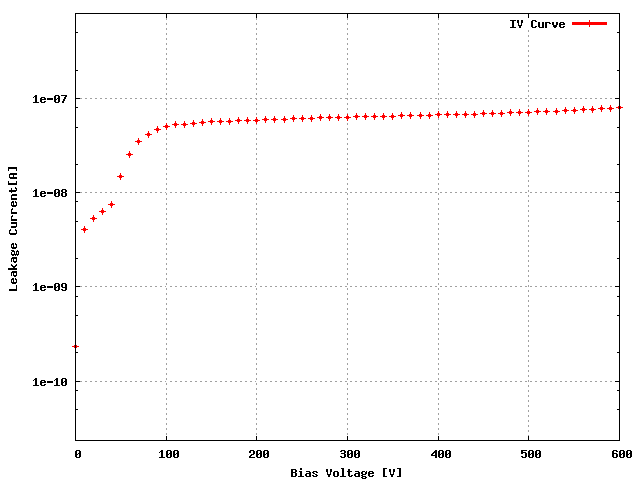

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 64B |
| ROC1 | W28_X54K5TT | 64A |
| ROC2 | W28_X54K5TT | 63C |
| ROC3 | W28_X54K5TT | 43A |
| ROC4 | W28_X54K5TT | 43B |
| ROC5 | W28_X54K5TT | 43C |
| Ibias_DAC, Ibias_DAC Data | 126 | 140 | 140 | 140 | 132 | 134 |
| Vana, VanaData | 117 | 133 | 144 | 127 | 123 | 135 |
| CalDelData and plots | 83 | 89 | 82 | 96 | 89 | 75 |
| VthrCompData and plots | 85 | 76 | 83 | 69 | 81 | 70 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 1 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:34 PM
