P_2x3B_129

P_2x3B_129_A

Production testing

Date:8/21/2007

Operator: Emily Grace

start testing time:10:40 AM

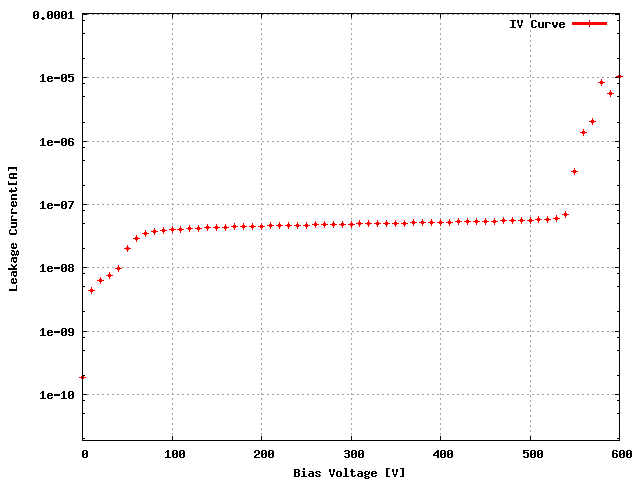

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W32_XA4K5NT 29D

ROC1 W32_XA4K5NT 29C

ROC2 W46_D3LQC5T 05C

ROC3 W31_X44K5UT 75D

ROC4 W31_X44K5UT 76B

ROC5 W31_X44K5UT 76C

ROC	ROC wafer	Label
ROC0	W32_XA4K5NT	29D
ROC1	W32_XA4K5NT	29C
ROC2	W46_D3LQC5T	05C
ROC3	W31_X44K5UT	75D
ROC4	W31_X44K5UT	76B
ROC5	W31_X44K5UT	76C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 160 166 156 150 154 146

Vana, VanaData 131 144 144 125 141 138

CalDelData and plots 88 70 90 84 79 84

VthrCompData and plots 75 81 88 70 87 84

TestDdata ,TestD Plots 0 0 1 1 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

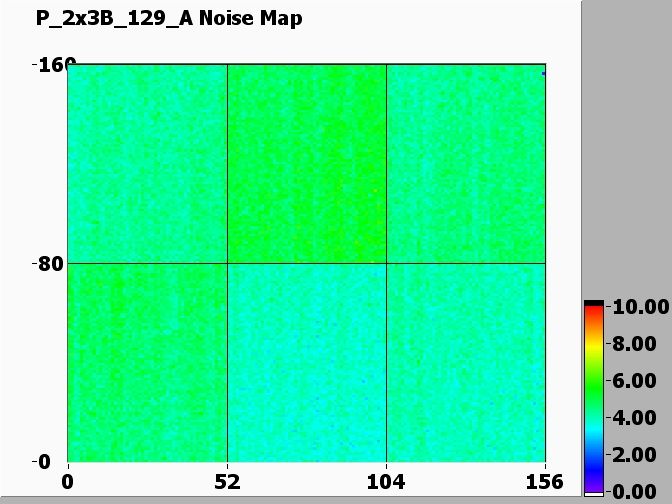

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	90	105	120	95	120
Vsf	140	140	145	140	140	140
VoffsetOp	80	120	110	80	75	90
VIbias_PH	100	100	100	100	95	100

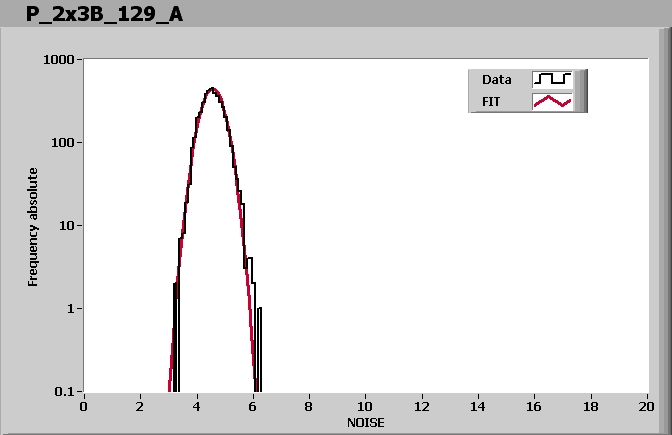

ROC0 NOISE			MEAN = 4.554280 SIGMA = 0.377909

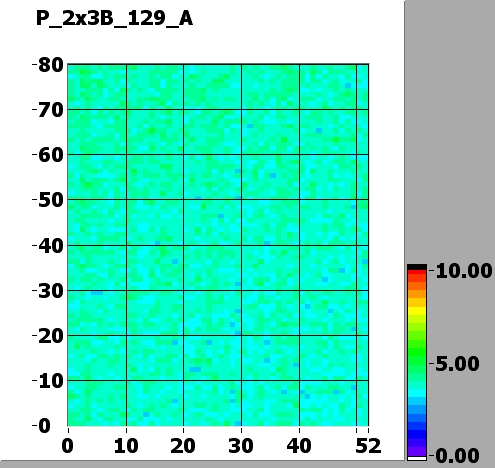

ROC1 NOISE			MEAN = 3.806367 SIGMA = 0.307907

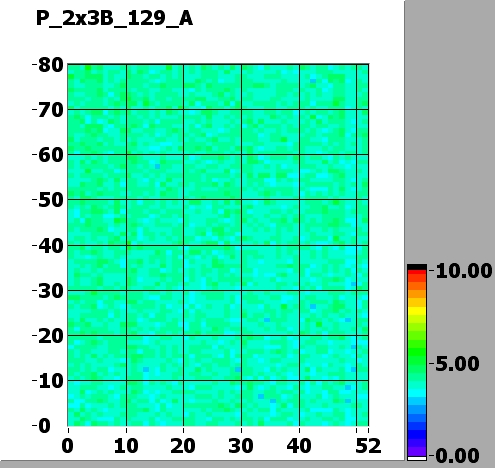

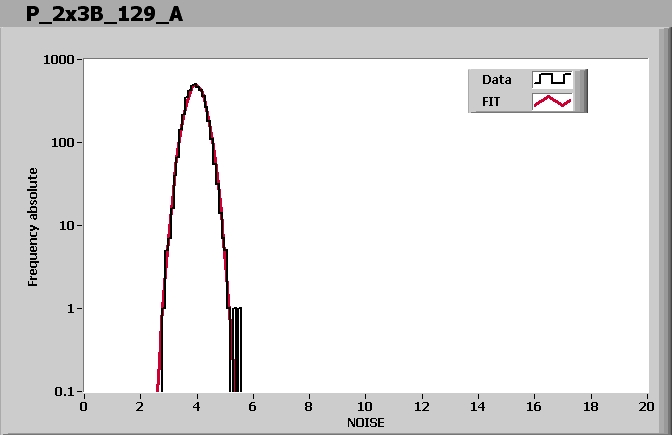

ROC2 NOISE			MEAN = 3.962488 SIGMA = 0.334352
ROC3 NOISE			MEAN = 4.407737 SIGMA = 0.340465
ROC4 NOISE			MEAN = 4.948238 SIGMA = 0.389204
ROC5 NOISE			MEAN = 4.230349 SIGMA = 0.339578

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:05 AM

Ibias_DAC, Ibias_DAC Data	160	166	156	150	154	146
Vana, VanaData	131	144	144	125	141	138
CalDelData and plots	88	70	90	84	79	84
VthrCompData and plots	75	81	88	70	87	84
TestDdata ,TestD Plots	0	0	1	1	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
