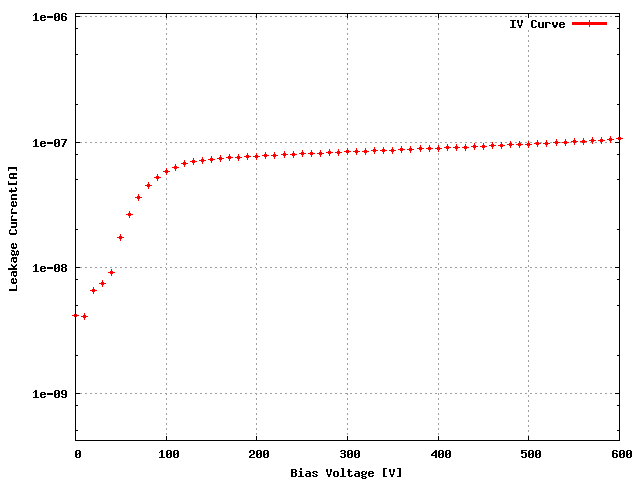

Sensor: S_2x3B_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W19_XN4K38T | 41A |
| ROC1 | W19_XN4K38T | 40D |
| ROC2 | W19_XN4K38T | 40B |
| ROC3 | W19_XN4K38T | 15D |
| ROC4 | W19_XN4K38T | 16A |
| ROC5 | W19_XN4K38T | 16C |
| Ibias_DAC, Ibias_DAC Data | 142 | 126 | 144 | 132 | 152 | 130 |
| Vana, VanaData | 142 | 112 | 134 | 127 | 128 | 127 |
| CalDelData and plots | 93 | 87 | 81 | 71 | 76 | 94 |
| VthrCompData and plots | 86 | 64 | 78 | 82 | 87 | 60 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 1 | 27 | 0 | 1 | 4 | 2 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): A disturbing number of dead pixels, but they are within the limits.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:02 PM
