P_2x3B_116

P_2x3B_116_A

Production testing

Date:3/9/2007

Operator: Cameron McKinney

start testing time:9:39 AM

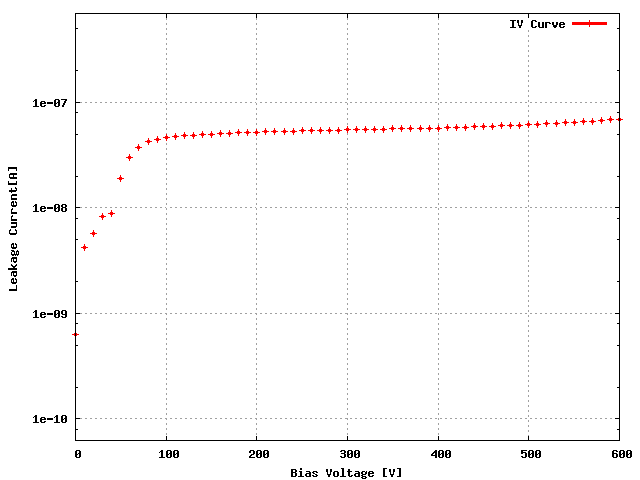

Sensor: S_2x3B_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 29A

ROC1 W34_XA4K3PT 28D

ROC2 W34_XA4K3PT 28B

ROC3 W34_XA4K3PT 04D

ROC4 W34_XA4K3PT 05B

ROC5 W34_XA4K3PT 05D

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	29A
ROC1	W34_XA4K3PT	28D
ROC2	W34_XA4K3PT	28B
ROC3	W34_XA4K3PT	04D
ROC4	W34_XA4K3PT	05B
ROC5	W34_XA4K3PT	05D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 156 140 134 136 140 122

Vana, VanaData 128 127 131 132 133 141

CalDelData and plots 78 97 95 93 93 92

VthrCompData and plots 85 79 78 73 76 70

TestDdata ,TestD Plots 0 0 0 0 0 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	115	130	125	125	90
Vsf	140	140	140	140	140	140
VoffsetOp	120	105	100	95	75	95
VIbias_PH	100	100	100	100	105	100

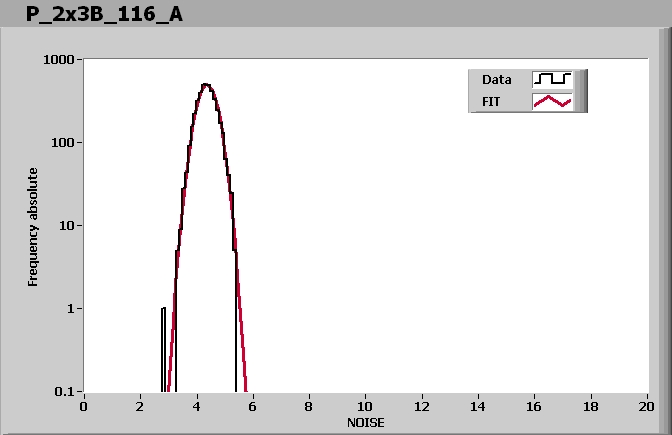

ROC0 NOISE			MEAN = 4.359940 SIGMA = 0.333170

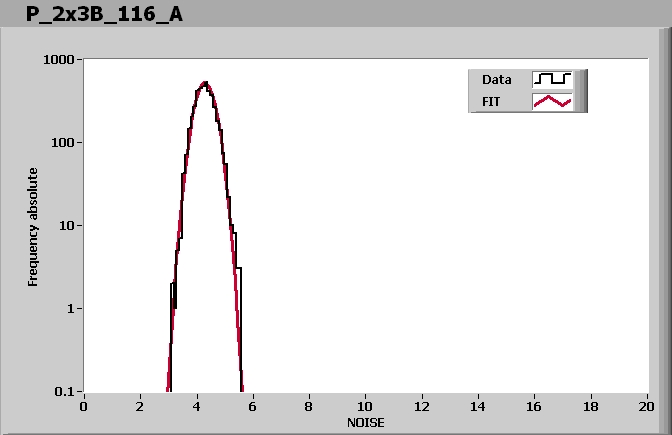

ROC1 NOISE			MEAN = 4.285941 SIGMA = 0.320770
ROC2 NOISE			MEAN = 4.378965 SIGMA = 0.337560
ROC3 NOISE			MEAN = 4.723935 SIGMA = 0.358606
ROC4 NOISE			MEAN = 4.882224 SIGMA = 0.383657

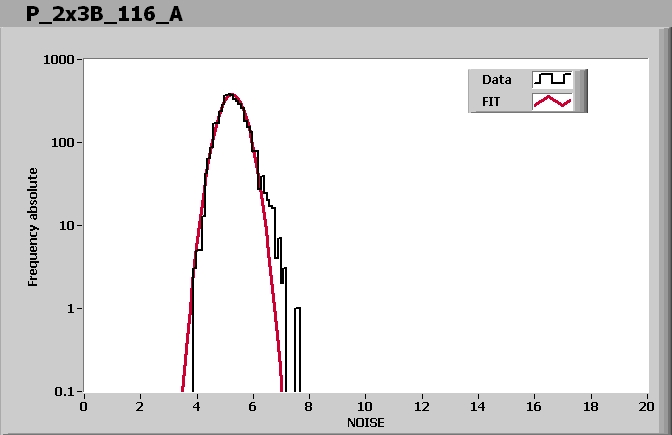

ROC5 NOISE			MEAN = 5.255065 SIGMA = 0.435821

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:59 AM

Ibias_DAC, Ibias_DAC Data	156	140	134	136	140	122
Vana, VanaData	128	127	131	132	133	141
CalDelData and plots	78	97	95	93	93	92
VthrCompData and plots	85	79	78	73	76	70
TestDdata ,TestD Plots	0	0	0	0	0	1
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
