P_2x3B_097

P_2x3B_097_C

Production testing

Date:6/14/2007

Operator: Emily Grace

start testing time:10:12 AM

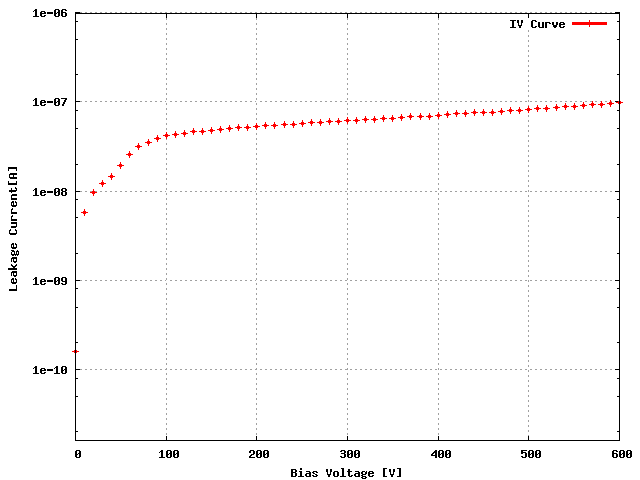

Sensor: S_2x3B_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KZNG1JT 65A

ROC1 KZNG1JT 16B

ROC2 KZNG1JT 26C

ROC3 KZNG1JT 75A

ROC4 KZNG1JT 16D

ROC5 KZNG1JT 16A

ROC	ROC wafer	Label
ROC0	KZNG1JT	65A
ROC1	KZNG1JT	16B
ROC2	KZNG1JT	26C
ROC3	KZNG1JT	75A
ROC4	KZNG1JT	16D
ROC5	KZNG1JT	16A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 166 162 154 162 160 150

Vana, VanaData 142 134 147 129 137 132

CalDelData and plots 65 82 80 85 86 96

VthrCompData and plots 92 81 84 79 79 80

TestDdata ,TestD Plots 1 0 0 0 3 3

LightData ,Light Plots 1 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	105	95	120	95	110
Vsf	145	140	150	135	140	140
VoffsetOp	105	90	75	55	80	95
VIbias_PH	100	100	105	95	100	100

ROC0 NOISE			MEAN = 3.668236 SIGMA = 0.288658
ROC1 NOISE			MEAN = 3.785101 SIGMA = 0.301893

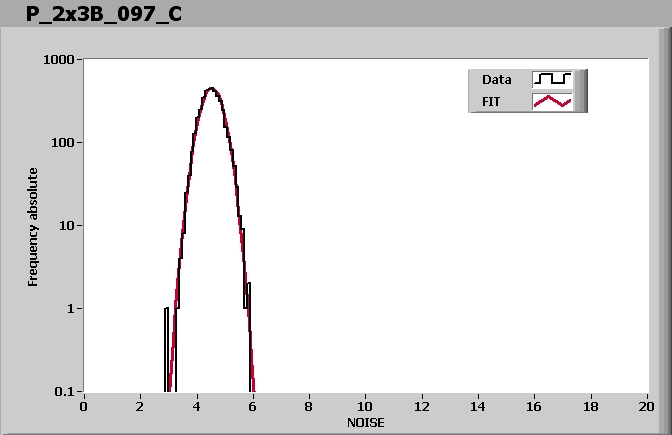

ROC2 NOISE			MEAN = 4.527122 SIGMA = 0.367061
ROC3 NOISE			MEAN = 4.418146 SIGMA = 0.354817
ROC4 NOISE			MEAN = 4.356335 SIGMA = 0.354953
ROC5 NOISE			MEAN = 4.165438 SIGMA = 0.326909

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:38 AM

Ibias_DAC, Ibias_DAC Data	166	162	154	162	160	150
Vana, VanaData	142	134	147	129	137	132
CalDelData and plots	65	82	80	85	86	96
VthrCompData and plots	92	81	84	79	79	80
TestDdata ,TestD Plots	1	0	0	0	3	3
LightData ,Light Plots	1	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
