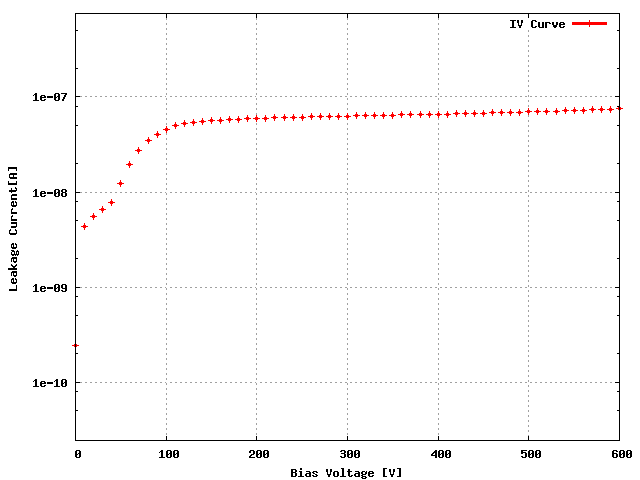

Sensor: S_2x3B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 64D |
| ROC1 | W21_XA4KFIT | 64A |
| ROC2 | W21_XA4KFIT | 63D |
| ROC3 | W21_XA4KFIT | 42B |
| ROC4 | W21_XA4KFIT | 42C |
| ROC5 | W21_XA4KFIT | 42D |
| Ibias_DAC, Ibias_DAC Data | 131 | 133 | 131 | 148 | 143 | 129 |
| Vana, VanaData | 127 | 132 | 127 | 144 | 130 | 137 |
| CalDelData and plots | 85 | 81 | 94 | 70 | 67 | 79 |
| VthrCompData and plots | 70 | 86 | 79 | 81 | 82 | 73 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Looks OK.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:47 PM
