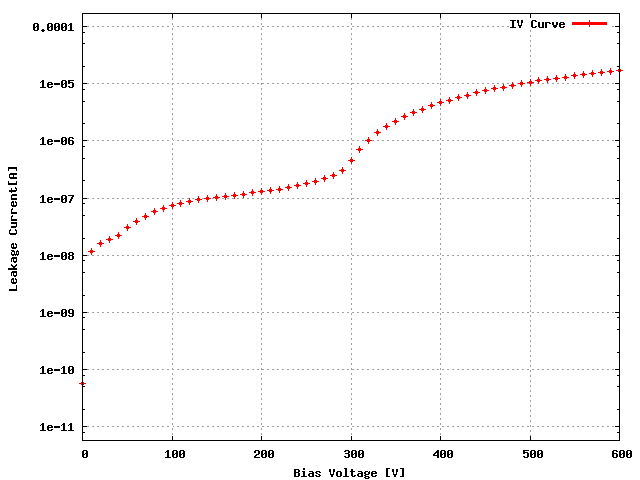

Sensor: S_2x3B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W20_XP4K3AT | 14D |
| ROC1 | W20_XP4K3AT | 14C |
| ROC2 | W20_XP4K3AT | 14B |
| ROC3 | W20_XP4K3AT | 51A |
| ROC4 | W20_XP4K3AT | 37B |
| ROC5 | W20_XP4K3AT | 37C |
| Ibias_DAC, Ibias_DAC Data | 132 | 137 | 139 | 136 | 138 | 148 |
| Vana, VanaData | 145 | 143 | 124 | 114 | 132 | 134 |
| CalDelData and plots | 79 | 74 | 83 | 79 | 86 | 86 |
| VthrCompData and plots | 85 | 74 | 61 | 75 | 76 | 76 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 1 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): No problems.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:54 PM
