P_2x3B_084_C
Parts committed by Bolla Gino on date CCYY-MM-DD
| ROC | ROC wafer | Label |
|---|
| ROC0 | XK4K3ET | 04A |
| ROC1 | XK4K3ET | 03B |
| ROC2 | XK4K3ET | 03A |
| ROC3 | XK4K3ET | 13C |
| ROC4 | XK4K3ET | 12D |
| ROC5 | XK4K3ET | 11D |
Inspected by Arndt Kirk on date 2006-08-25
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-28 by Arndt Kirk
PLAQUETTE TESTED on 2006-09-12 by Cameron McKinney
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 160 | 142 | 145 | 149 | 143 | |
| Vana | 133 | 118 | 133 | 127 | 131 | 113 | |
| Cal_Del | 80 | 86 | 73 | 89 | 97 | 80 | |
| Vthrs_Comp | 73 | 82 | 83 | 70 | 71 | 75 | |
| Unbumped | 0 | 0 | 1 | 3 | 3 | 9 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 3 | 3 | 9 | |
PLAQUETTE READY FOR SHIPPING

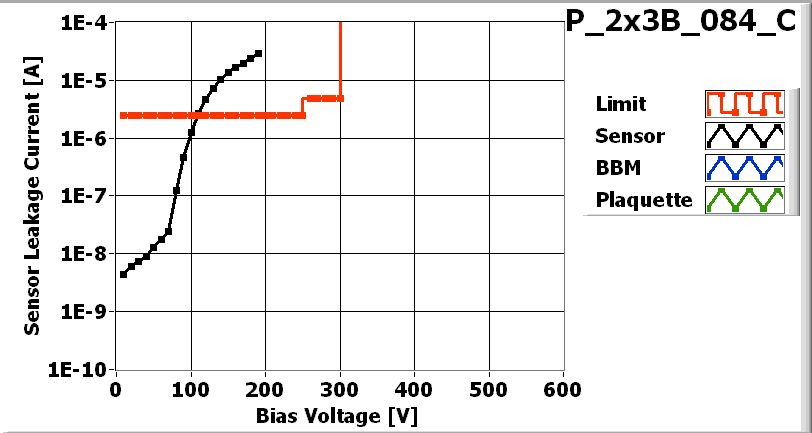

![[IMAGE] of](P_2x3B_084_C_IV.jpg)

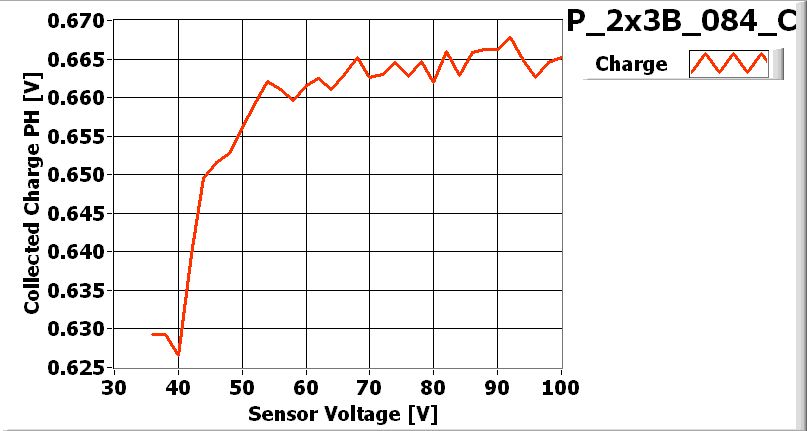

![[IMAGE] of](P_2x3B_084_C_LASER.jpg)

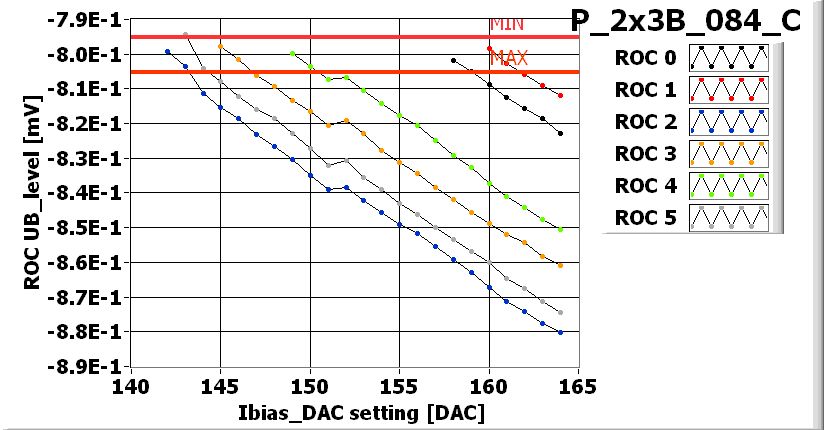

![[IMAGE] of](P_2x3B_084_C_Ibias-dac.jpg)

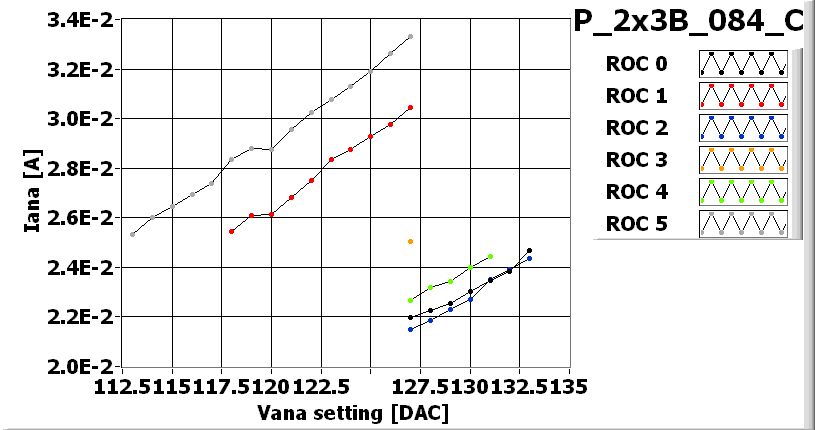

![[IMAGE] of](P_2x3B_084_C_Vana.jpg)
