P_2x3B_082

P_2x3B_082_A

Parts committed by Bolla Gino on date 12/18/2006

Part	ID
BBM	BBM_082-2x3B
VHDI	2x3_218

ROC ROC wafer Label

ROC0 W32_XA4K5NT 58A

ROC1 W32_XA4K5NT 57C

ROC2 W32_XA4K5NT 41C

ROC3 W32_XA4K5NT 35D

ROC4 W32_XA4K5NT 36A

ROC5 W32_XA4K5NT 37B

ROC	ROC wafer	Label
ROC0	W32_XA4K5NT	58A
ROC1	W32_XA4K5NT	57C
ROC2	W32_XA4K5NT	41C
ROC3	W32_XA4K5NT	35D
ROC4	W32_XA4K5NT	36A
ROC5	W32_XA4K5NT	37B

Inspected by Lockwood Gale on date 12/20/2006

LR_dev 0.042

LL_dev 0.045

FINAL COMMENT by Lockwood Gale No assembly problems. No problems wirebonding.

PLAQUETTE made READY for testing on 12/20/2006 by Lockwood Gale

P_2x3B_082_Aon 12/21/2006 11:51 AM

PLAQUETTE TESTED on 2006-12-21 by Gino Bolla

IV_XML-File

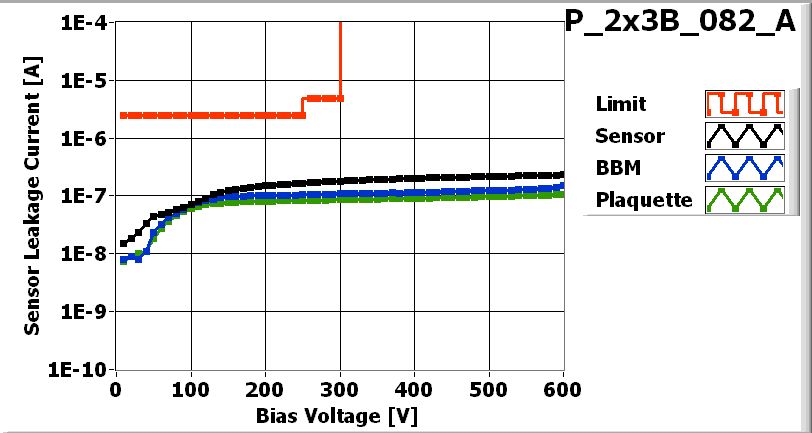

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5

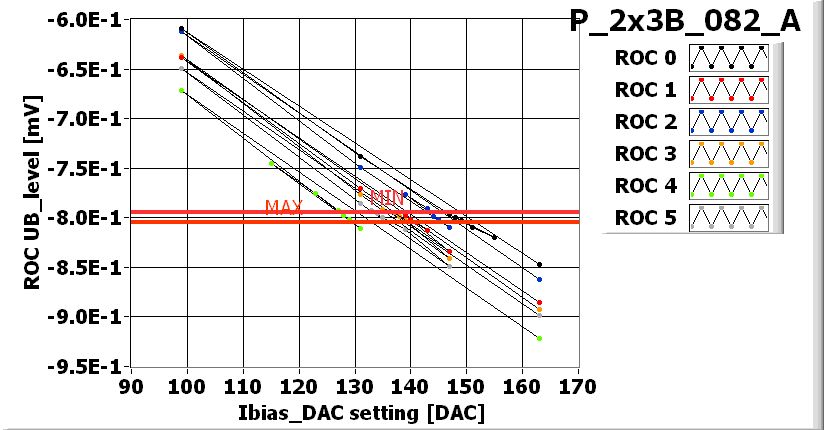

Ibias_DAC	148	140	144	138	128	134

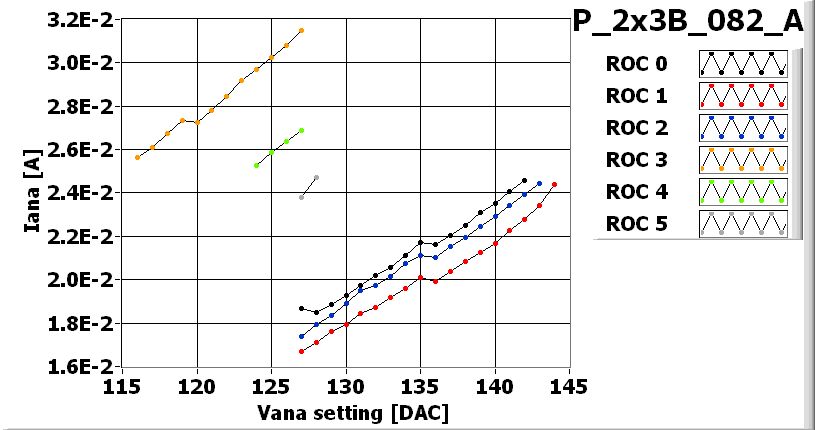

Vana	142	144	143	116	124	128
Cal_Del	74	78	85	88	86	80
Vthrs_Comp	90	88	78	58	69	75
Unbumped	0	0	0	0	0	0
Dead	0	0	0	0	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

PLAQUETTE encapsulated on 2007-01-11 by Arndt Kirk

P_2x3B_082_A-1on 1/15/2007 1:02 PM AFTER POTTING

Shipped on date 2007-01-15

Plaquette assigned to panel P3L_015
