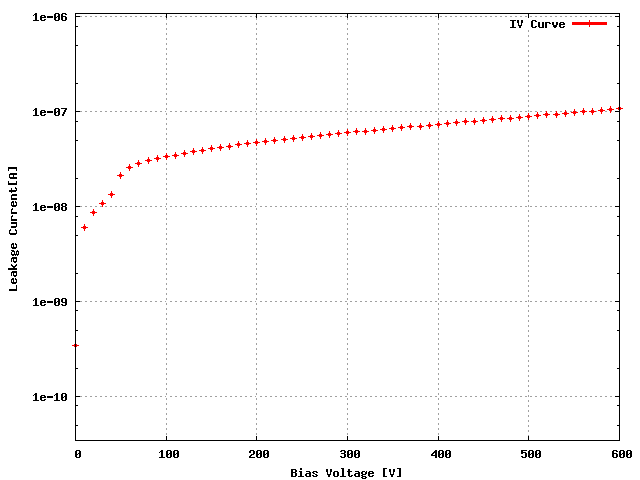

Sensor: S_2x3B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XE4K3KT | 61C |
ROC1 | XE4K3KT | 61D |
ROC2 | XE4K3KT | 58A |
ROC3 | XE4K3KT | 43A |
ROC4 | XE4K3KT | 51C |
ROC5 | XE4K3KT | 55A |
Ibias_DAC, Ibias_DAC Data | 144 | 134 | 146 | 144 | 128 | 128 |
Vana, VanaData | 123 | 127 | 141 | 131 | 115 | 127 |
CalDelData and plots | 92 | 73 | 69 | 77 | 102 | 78 |
VthrCompData and plots | 74 | 76 | 83 | 79 | 77 | 73 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 1 | 1 | 0 | 0 | 0 | 2 |
LightData ,Light Plots | 0 | 1 | 2 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:46 PM
