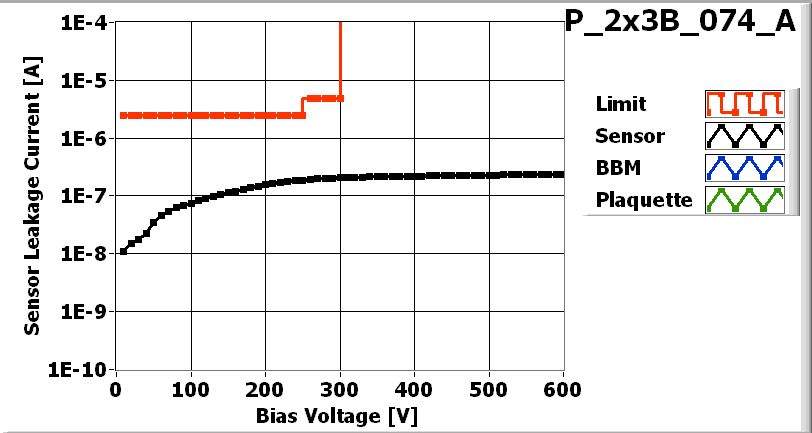

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_074_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_074-2x3B |
| VHDI | 2x3_249 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 41C |
| ROC1 | X14JP6T | 58D |
| ROC2 | X14JP6T | 30B |
| ROC3 | X14JP6T | 18D |
| ROC4 | X14JP6T | 03A |
| ROC5 | X14JP6T | 03D |
Inspected by Arndt Kirk on date 2006-07-07
| LR_dev | 0.014 |
| LL_dev | 0.028 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-07 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-07 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 149 | 169 | 163 | 161 | 168 | 157 | |
| Vana | 129 | 130 | 132 | 134 | 143 | 118 | |
| Cal_Del | 97 | 83 | 75 | 80 | 76 | 99 | |
| Vthrs_Comp | 73 | 70 | 67 | 76 | 87 | 67 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 2 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 2 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_074_A_Ibias-dac.jpg) |

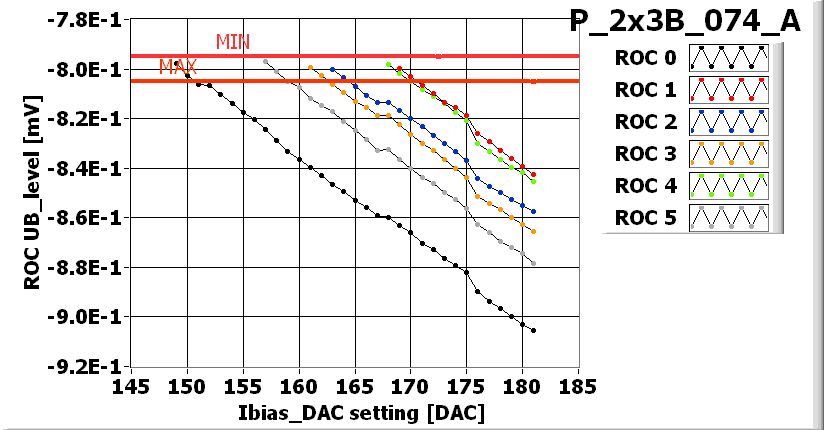

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_074_A_Vana.jpg) |

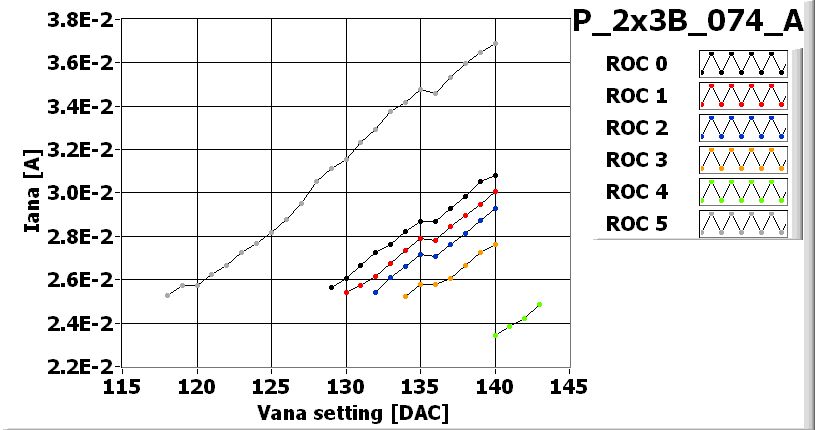

VANA_XML-File |
![[IMAGE] of](P_2x3B_074_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_074_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_074_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_074_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-12
