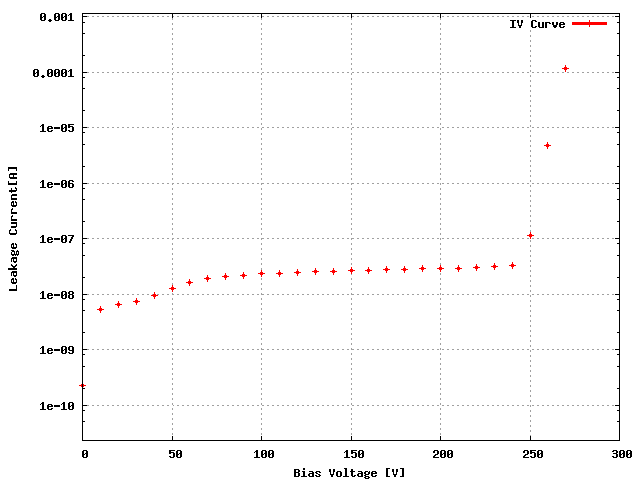

Sensor: S_2x3B_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | X74JP0T | 55A |
ROC1 | X74JP0T | 54C |
ROC2 | X74JP0T | 54B |
ROC3 | X74JP0T | 48B |
ROC4 | X74JP0T | 48C |
ROC5 | X74JP0T | 48D |
Ibias_DAC, Ibias_DAC Data | 142 | 126 | 152 | 139 | 133 | 121 |
Vana, VanaData | 135 | 122 | 145 | 130 | 123 | 127 |
CalDelData and plots | 0 | 0 | 0 | 0 | 0 | 0 |
VthrCompData and plots | 24 | 4 | 35 | 16 | 8 | 7 | Depletion Voltage is -10 and suggested operational voltage is -50
