![[IMAGE] of](P_2x3B_061_C_IV.jpg)

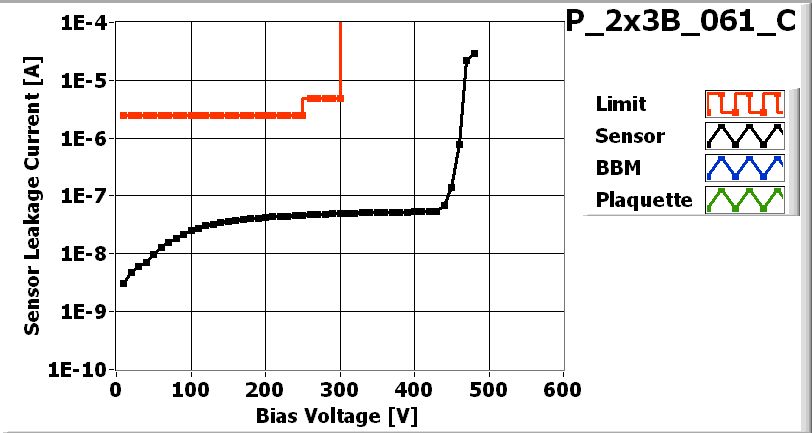

| IV_XML-File |
| Maximum Voltage 480 V |
![[IMAGE] of](P_2x3B_061_C_LASER.jpg)

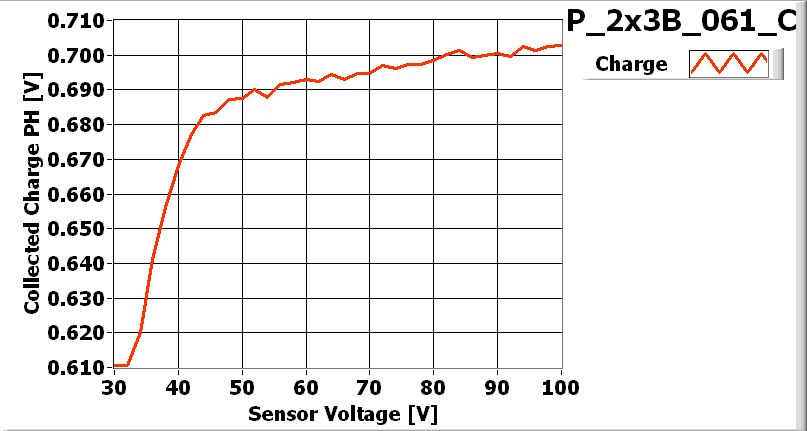

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_061-2x3B |
| VHDI | 2x3_292 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XI4K3GT | 05B |
| ROC1 | XI4K3GT | 06A |
| ROC2 | XI4K3GT | 05A |
| ROC3 | XI4K3GT | 15D |
| ROC4 | XI4K3GT | 14D |
| ROC5 | XI4K3GT | 13D |
Inspected by Arndt Kirk on date 2006-08-14
| LR_dev | 0.039 |
| LL_dev | 0.036 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-14 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-15 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 143 | 155 | 135 | 129 | 140 | 143 | |
| Vana | 131 | 123 | 120 | 117 | 120 | 135 | |
| Cal_Del | 95 | 101 | 101 | 96 | 75 | 89 | |
| Vthrs_Comp | 75 | 72 | 71 | 64 | 76 | 67 | |
| Unbumped | 0 | 1 | 0 | 36 | 1 | 4 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 1 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 2 | 0 | 36 | 1 | 4 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_061_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_061_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_061_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_061_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_061_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_061_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-17
