![[IMAGE] of](P_2x3B_060_A_IV.jpg)

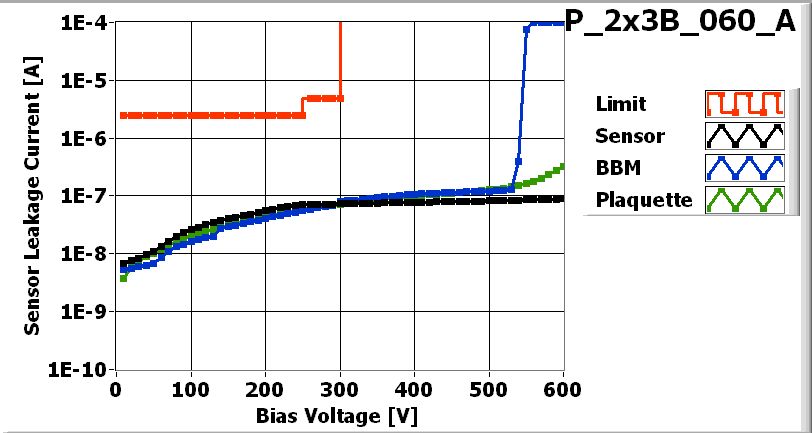

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_060_A_LASER.jpg)

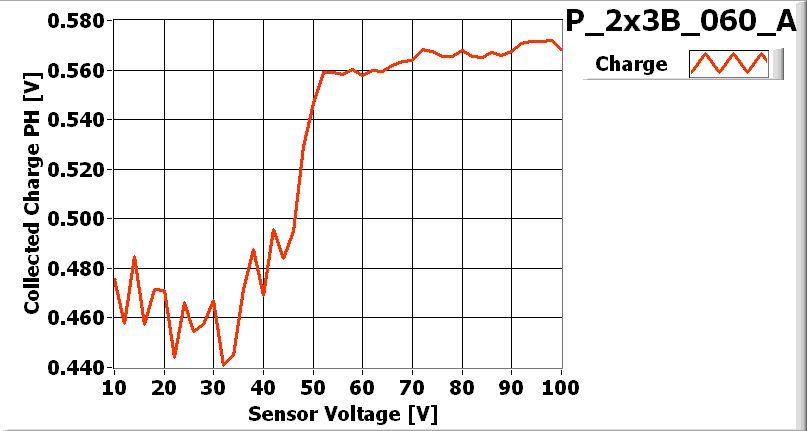

| LASER_XML-File |
| Depletion Voltage 56 V |
| Operational Voltage 96 V |
Parts committed by Bolla Gino on date 8/9/2007
| Part | ID |
|---|---|
| BBM | BBM_060-2x3B |
| VHDI | 2x3_424 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 47A |
| ROC1 | W46_D3LQC5T | 46D |
| ROC2 | W46_D3LQC5T | 06B |
| ROC3 | W46_D3LQC5T | 06A |
| ROC4 | W46_D3LQC5T | 32B |
| ROC5 | W46_D3LQC5T | 32C |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/15/2007
| LR_dev | 0.021 |
| LL_dev | 0.022 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | NO ASSEMBLY PROBLEMS No wirebonding problem |
PLAQUETTE made READY for ENCAPSULATION on 8/15/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/15/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/15/2007 by Ozhan Koybasi
P_2x3B_060_Aon 8/15/2007 3:50 PM
P_2x3B_060_Aon 8/15/2007 3:50 PM
PLAQUETTE TESTED on 2007-08-15 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 154 | 146 | 168 | 144 | 154 | |
| Vana | 130 | 134 | 134 | 144 | 146 | 156 | |
| Cal_Del | 88 | 80 | 88 | 88 | 81 | 87 | |
| Vthrs_Comp | 82 | 91 | 83 | 87 | 89 | 94 | |
| Unbumped | 0 | 0 | 0 | 1 | 1 | 0 | |
| Dead | 38 | 36 | 0 | 0 | 25 | 13 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 38 | 36 | 0 | 1 | 26 | 13 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_060_A_Ibias-dac.jpg) |

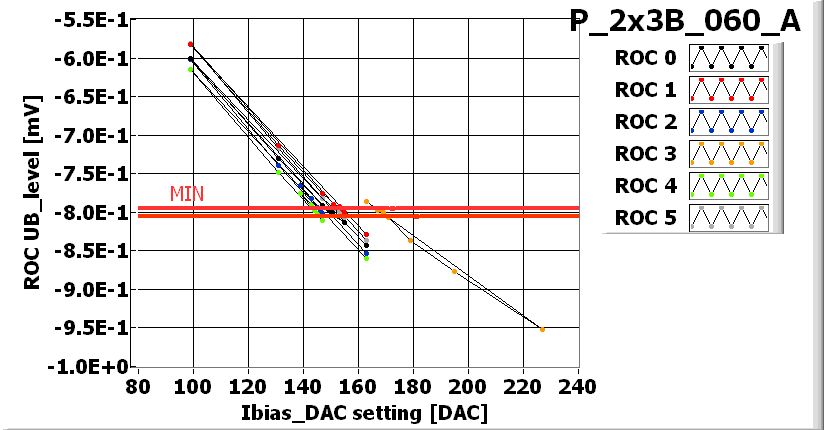

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_060_A_Vana.jpg) |

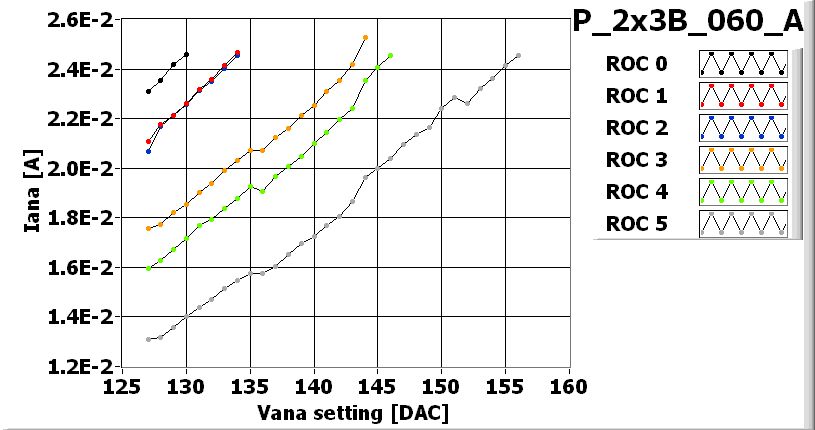

VANA_XML-File |
![[IMAGE] of](P_2x3B_060_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_060_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_060_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_060_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 110 | 115 | 100 | 95 | 100 |
| Vsf | 140 | 140 | 140 | 145 | 150 | 155 |
| VoffsetOp | 100 | 110 | 80 | 115 | 105 | 100 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_060_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_060_A-580-efficiency.jpg)

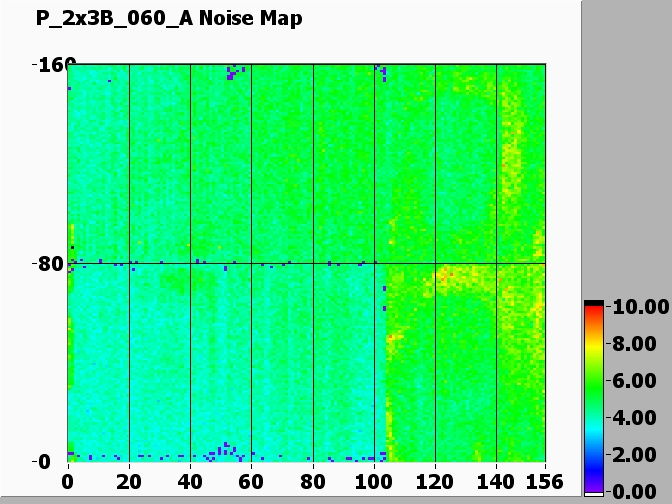

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_060_A-200-noise.jpg)

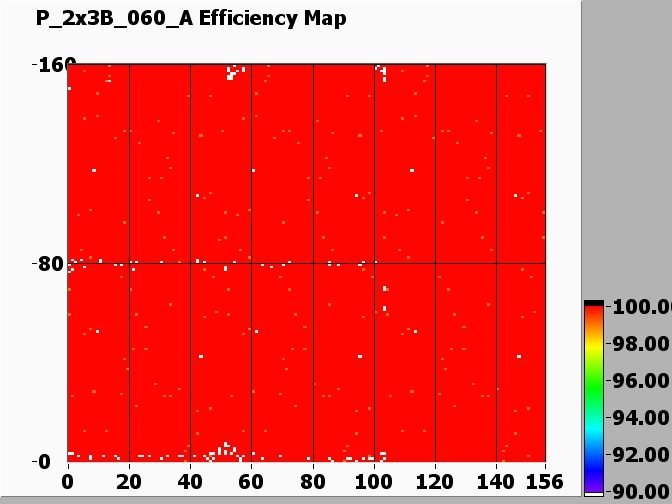

Efficiency MAP
![[IMAGE] of](P_2x3B_060_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
