P_2x3B_059_C
Parts committed by Bolla Gino on date CCYY-MM-DD
| ROC | ROC wafer | Label |
|---|
| ROC0 | XF4K3JT | 40A |
| ROC1 | XF4K3JT | 41A |
| ROC2 | XF4K3JT | 41B |
| ROC3 | XF4K3JT | 43B |
| ROC4 | XF4K3JT | 44A |
| ROC5 | XF4K3JT | 45B |
Inspected by Bolla Gino on date 9/6/2006
| FINAL COMMENT by Bolla Gino | No assembly problem No wirebonding problems |
PLAQUETTE made READY for testing on 9/6/2006 by Bolla Gino
PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |

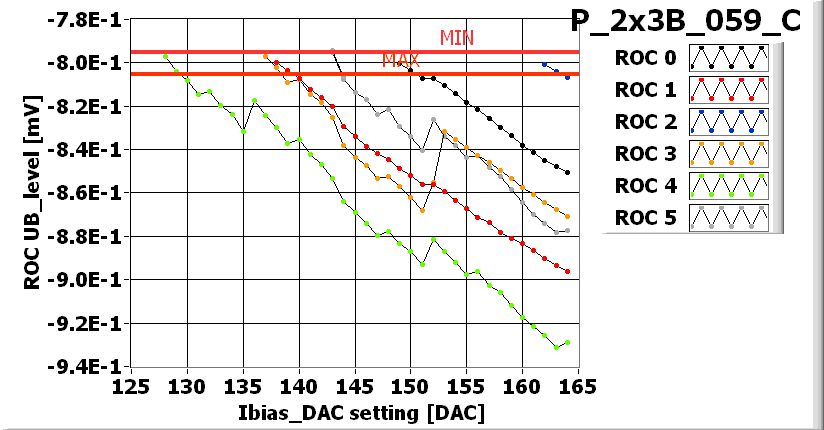

| Ibias_DAC | 149 | 138 | 162 | 137 | 128 | 144 | |

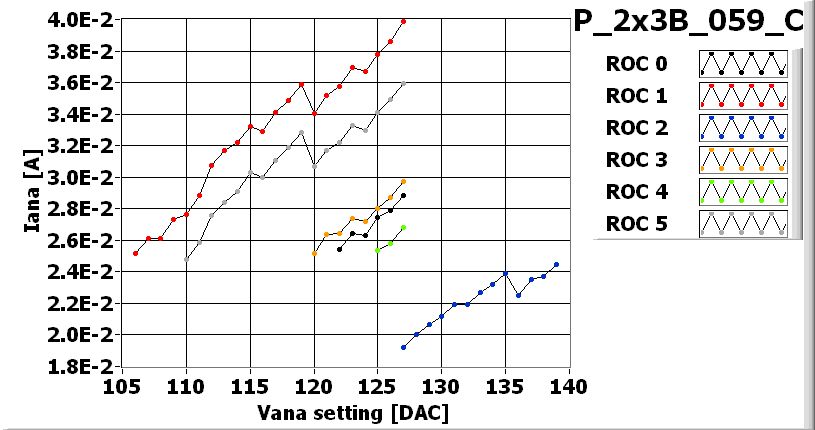

| Vana | 122 | 106 | 139 | 120 | 125 | 110 | |
| Cal_Del | 76 | 103 | 91 | 95 | 86 | 76 | |
| Vthrs_Comp | 67 | 72 | 71 | 70 | 70 | 74 | |
| Unbumped | 0 | 4 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 3 | 0 | 0 | 0 | |
| Total BAD | 1 | 4 | 3 | 0 | 0 | 0 | |
PLAQUETTE READY FOR SHIPPING
![[IMAGE] of](P_2x3B_059_C_IV.jpg)

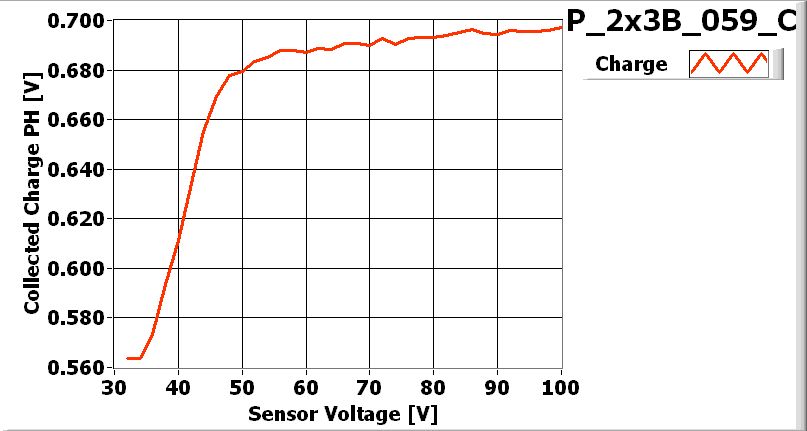

![[IMAGE] of](P_2x3B_059_C_LASER.jpg)
![[IMAGE] of](P_2x3B_059_C_Ibias-dac.jpg)
![[IMAGE] of](P_2x3B_059_C_Vana.jpg)
![[IMAGE] of](P_2x3B_059_CDead-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_2x3B_059_CNoisy-Pixel-Alive.jpg){kind=tracking}
![[IMAGE] of](P_2x3B_059_CUndecoded-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_2x3B_059_Cno-bump-light.jpg)
