Production testing

Date:6/8/2007

Operator: Emily Grace

start testing time:11:38 AM

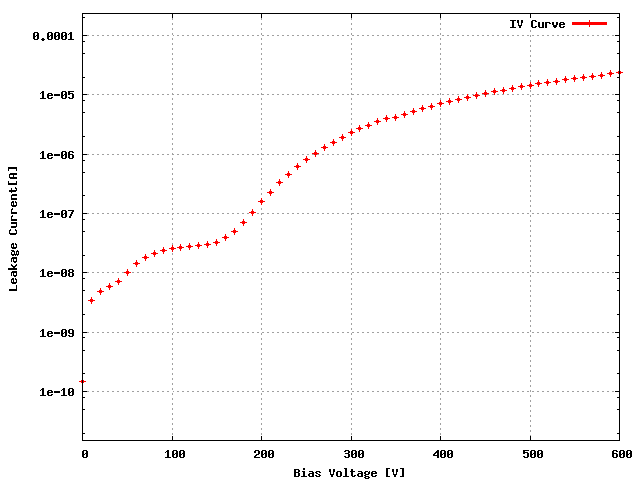

Sensor: S_2x3B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DULQEDT 56B

ROC1 DULQEDT 56C

ROC2 DULQEDT 36D

ROC3 DULQEDT 66B

ROC4 DULQEDT 68C

ROC5 DULQEDT 66C

ROC	ROC wafer	Label
ROC0	DULQEDT	56B
ROC1	DULQEDT	56C
ROC2	DULQEDT	36D
ROC3	DULQEDT	66B
ROC4	DULQEDT	68C
ROC5	DULQEDT	66C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 144 154 156 142 144 144

Vana, VanaData 151 150 141 129 150 138

CalDelData and plots 97 99 90 92 88 89

VthrCompData and plots 90 84 85 74 88 82

TestDdata ,TestD Plots 0 2 1 0 0 1

LightData ,Light Plots 0 1 1 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	100	100	120	95	100
Vsf	155	150	145	140	155	140
VoffsetOp	100	125	100	70	120	85
VIbias_PH	100	100	100	100	95	100

ROC0 NOISE			MEAN = 4.328954 SIGMA = 0.350041

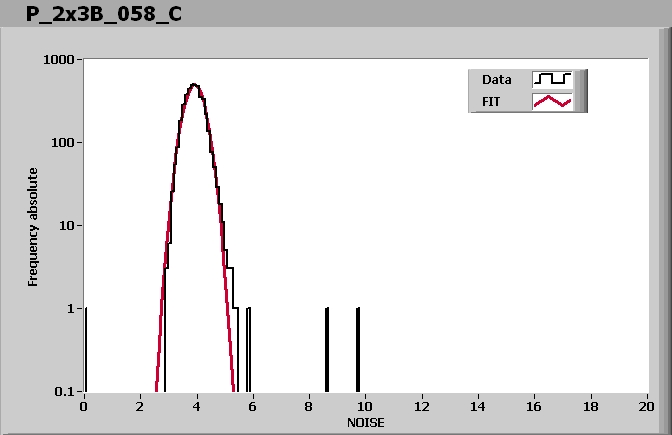

ROC1 NOISE			MEAN = 3.914136 SIGMA = 0.332191

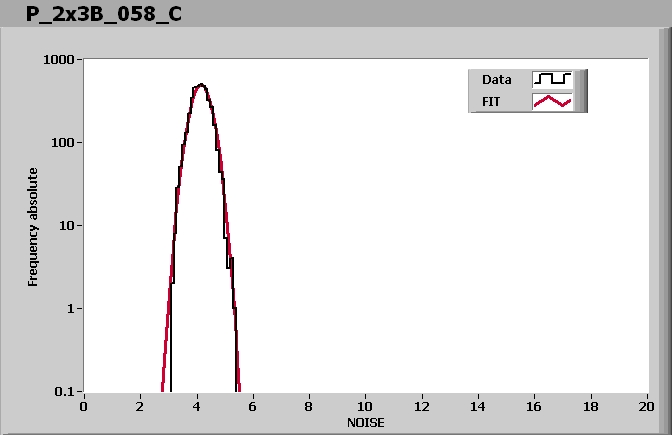

ROC2 NOISE			MEAN = 4.149488 SIGMA = 0.331949
ROC3 NOISE			MEAN = 4.527723 SIGMA = 0.368004
ROC4 NOISE			MEAN = 4.143121 SIGMA = 0.343995

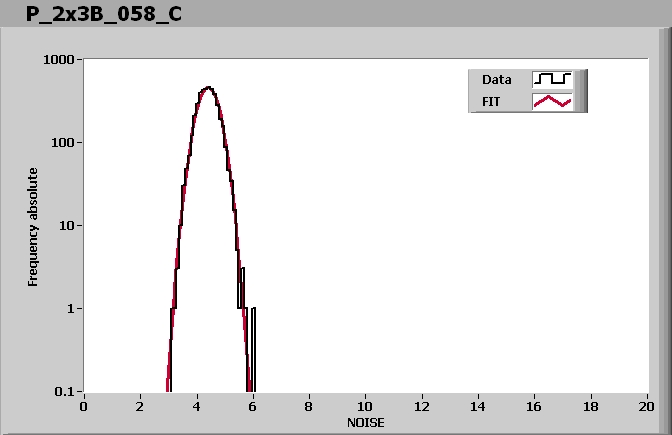

ROC5 NOISE			MEAN = 4.397378 SIGMA = 0.355732

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:03 PM

Ibias_DAC, Ibias_DAC Data	144	154	156	142	144	144
Vana, VanaData	151	150	141	129	150	138
CalDelData and plots	97	99	90	92	88	89
VthrCompData and plots	90	84	85	74	88	82
TestDdata ,TestD Plots	0	2	1	0	0	1
LightData ,Light Plots	0	1	1	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
