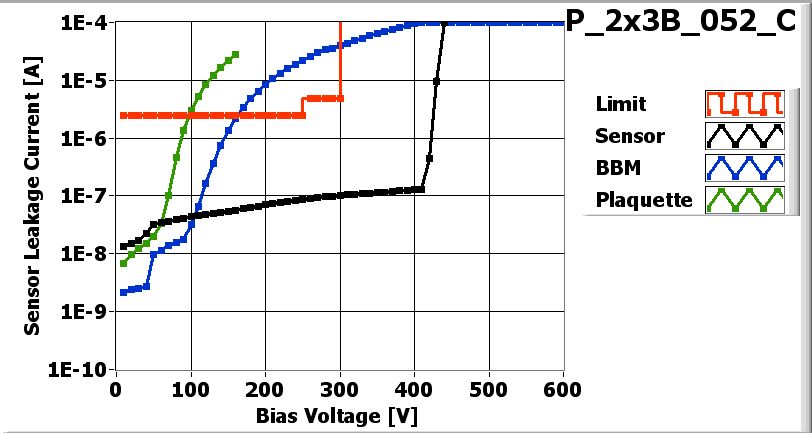

![[IMAGE] of](P_2x3B_052_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 160 V |
![[IMAGE] of](P_2x3B_052_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/29/2007
| Part | ID |
|---|---|
| BBM | BBM_052-2x3B |
| VHDI | 2x3_638 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 04A |
| ROC1 | KZNG1JT | 35D |
| ROC2 | KZNG1JT | 45B |
| ROC3 | KZNG1JT | 34C |
| ROC4 | KZNG1JT | 14C |
| ROC5 | KZNG1JT | 16C |
Inspected by Lockwood Gale on date 6/11/2007
| LR_dev | 0.017 |
| LL_dev | 0.017 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/11/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/11/2007 by Kozak Brian
P_2x3B_052_Con 6/12/2007 10:44 AM
P_2x3B_052_Con 6/12/2007 10:44 AM
PLAQUETTE TESTED on 2007-06-12 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 156 | 158 | 146 | 186 | 158 | 160 | |
| Vana | 138 | 142 | 133 | 148 | 124 | 138 | |
| Cal_Del | 79 | 67 | 68 | 63 | 84 | 88 | |
| Vthrs_Comp | 79 | 85 | 85 | 87 | 75 | 75 | |
| Unbumped | 0 | 1 | 11 | 0 | 1 | 0 | |
| Dead | 0 | 2 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 3 | 11 | 0 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

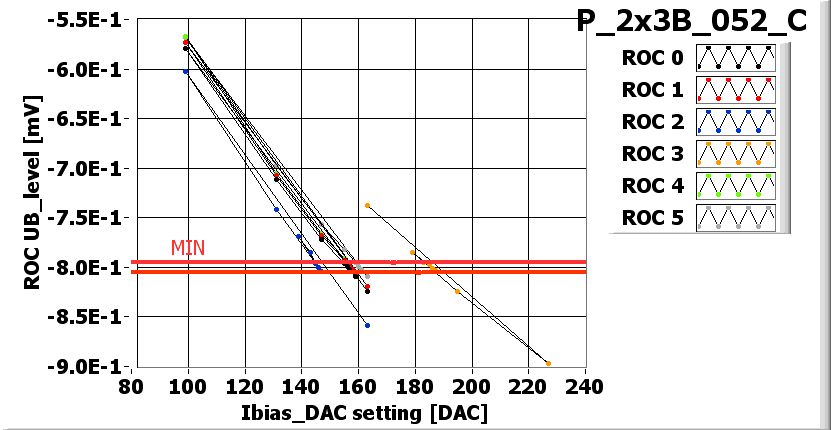

![[IMAGE] of](P_2x3B_052_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_052_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_052_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_052_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_052_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_052_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 100 | 110 | 110 | 95 |
| Vsf | 140 | 140 | 140 | 145 | 140 | 140 |
| VoffsetOp | 80 | 90 | 85 | 125 | 75 | 95 |
| VIbias_PH | 105 | 100 | 105 | 100 | 105 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_052_C-140-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_052_C-140-efficiency.jpg)

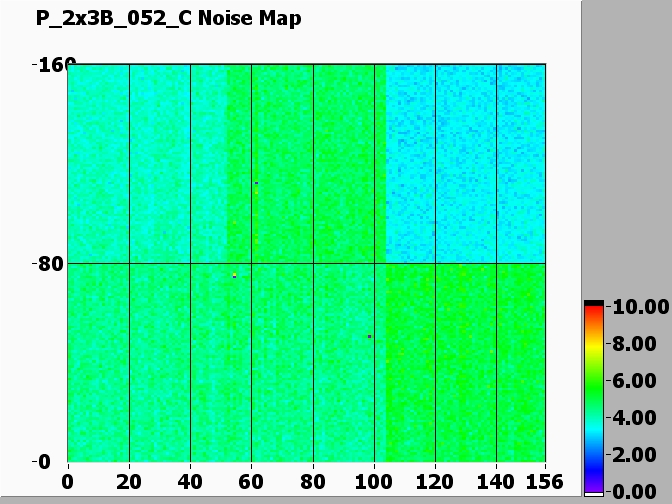

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_052_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_052_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
