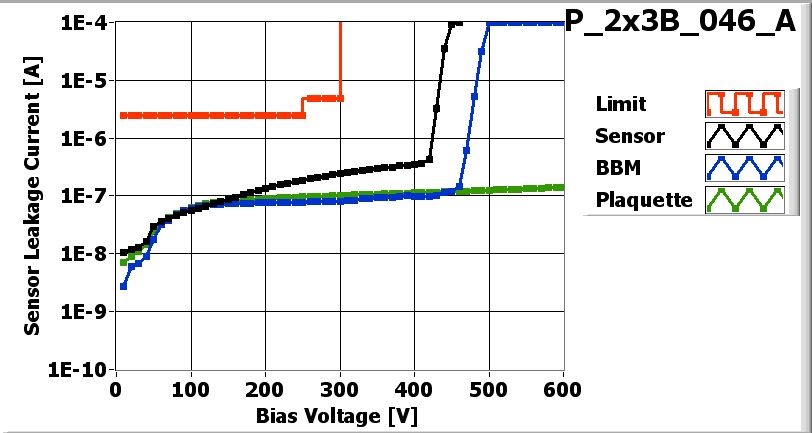

![[IMAGE] of](P_2x3B_046_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

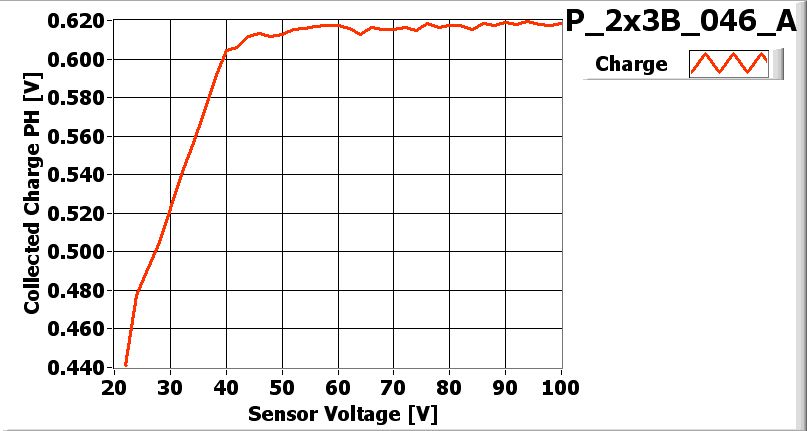

![[IMAGE] of](P_2x3B_046_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_046-2x3B |
| VHDI | 2x3_624 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 06D |
| ROC1 | W36_XD4K3LT | 06C |
| ROC2 | W36_XD4K3LT | 06B |
| ROC3 | W49_D1LQGST | 06B |
| ROC4 | W49_D1LQGST | 06D |
| ROC5 | W45_D3LQFLT | 73A |
Inspected by Lockwood Gale on date 5/24/2007
| LR_dev | 0.023 |
| LL_dev | 0.035 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems, ROC 2 CH 20, ROC 1 Ch 4 2 attempts. |
PLAQUETTE made READY for ENCAPSULATION on 5/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/24/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/24/2007 by Perera Rajiv
P_2x3B_046_Aon 5/25/2007 9:39 AM
P_2x3B_046_A-1on 5/25/2007 9:45 AM
P_2x3B_046_A-1on 5/25/2007 9:45 AM
PLAQUETTE TESTED on 2007-05-25 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 150 | 148 | 160 | 158 | 154 | |
| Vana | 137 | 131 | 122 | 143 | 172 | 149 | |
| Cal_Del | 94 | 88 | 95 | 79 | 73 | 93 | |
| Vthrs_Comp | 70 | 69 | 73 | 84 | 87 | 90 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

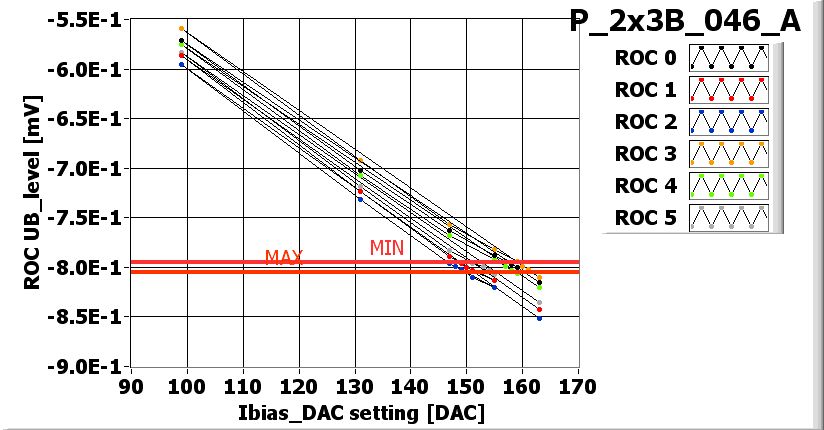

![[IMAGE] of](P_2x3B_046_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

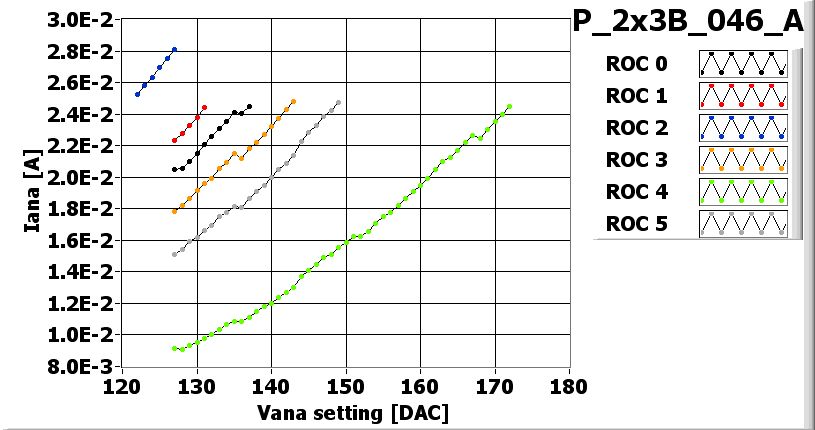

![[IMAGE] of](P_2x3B_046_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_046_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_046_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_046_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_046_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 120 | 120 | 90 | 110 | 95 |
| Vsf | 140 | 140 | 135 | 140 | 160 | 150 |
| VoffsetOp | 80 | 75 | 70 | 100 | 110 | 95 |
| VIbias_PH | 105 | 100 | 100 | 95 | 95 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_046_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_046_A-1-580-efficiency.jpg)

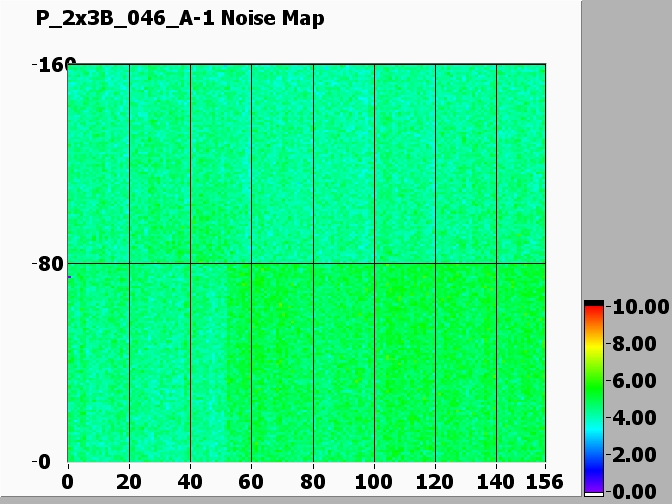

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_046_A-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_046_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
