P_2x3B_042_C
Parts committed by Bolla Gino on date CCYY-MM-DD
| ROC | ROC wafer | Label |
|---|
| ROC0 | XK4K3ET | 47B |
| ROC1 | XK4K3ET | 48A |
| ROC2 | XK4K3ET | 48B |
| ROC3 | XK4K3ET | 45B |
| ROC4 | XK4K3ET | 46A |
| ROC5 | XK4K3ET | 49A |
Inspected by Arndt Kirk on date 2006-08-24
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-28 by Arndt Kirk
PLAQUETTE TESTED on 2006-09-12 by Cameron McKinney
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 147 | 143 | 158 | 163 | 166 | 163 | |
| Vana | 116 | 105 | 169 | 133 | 141 | 126 | |
| Cal_Del | 86 | 100 | 0 | 83 | 91 | 77 | |
| Vthrs_Comp | 69 | 70 | 0 | 73 | 81 | 89 | |
| Unbumped | 78 | 148 | 0 | 1066 | 162 | 42 | |
| Dead | 0 | 0 | 0 | 1 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 78 | 148 | 0 | 1067 | 163 | 42 | |
PLAQUETTE READY FOR SHIPPING

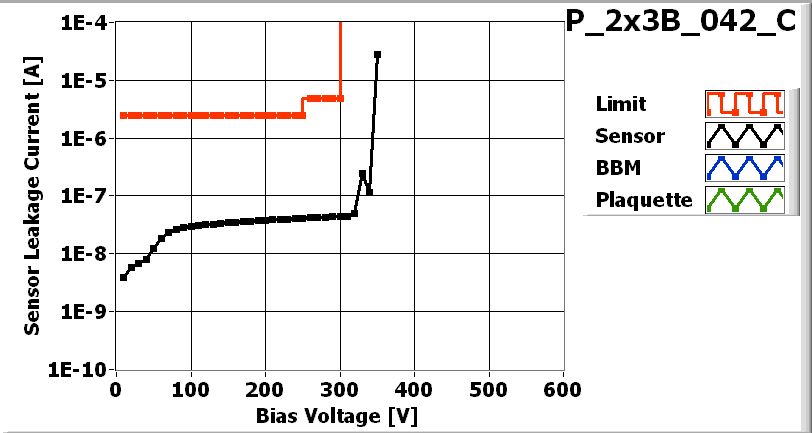

![[IMAGE] of](P_2x3B_042_C_IV.jpg)

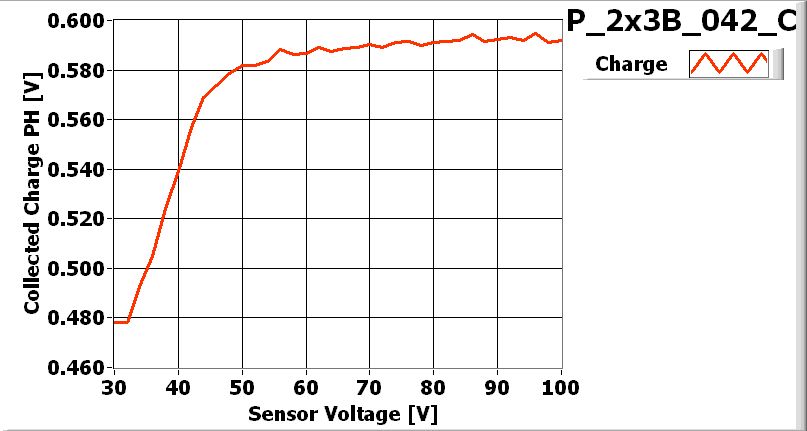

![[IMAGE] of](P_2x3B_042_C_LASER.jpg)

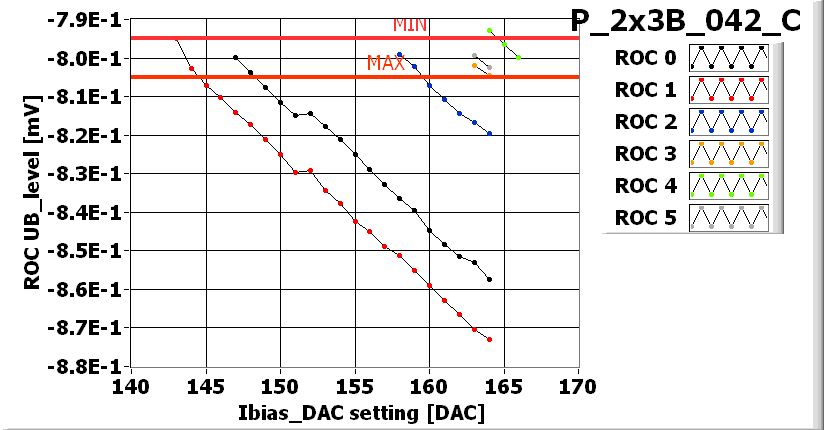

![[IMAGE] of](P_2x3B_042_C_Ibias-dac.jpg)

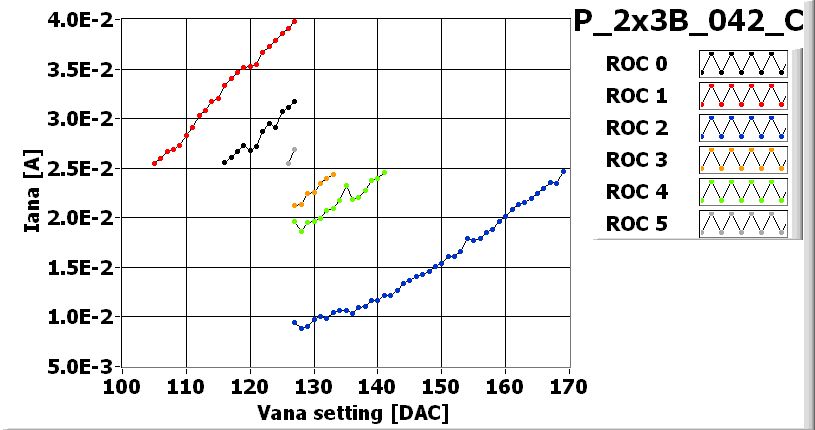

![[IMAGE] of](P_2x3B_042_C_Vana.jpg)
![[IMAGE] of](P_2x3B_042_CDead-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_2x3B_042_CNoisy-Pixel-Alive.jpg){kind=tracking}
![[IMAGE] of](P_2x3B_042_CUndecoded-PixelAlivetest.jpg){kind=tracking}

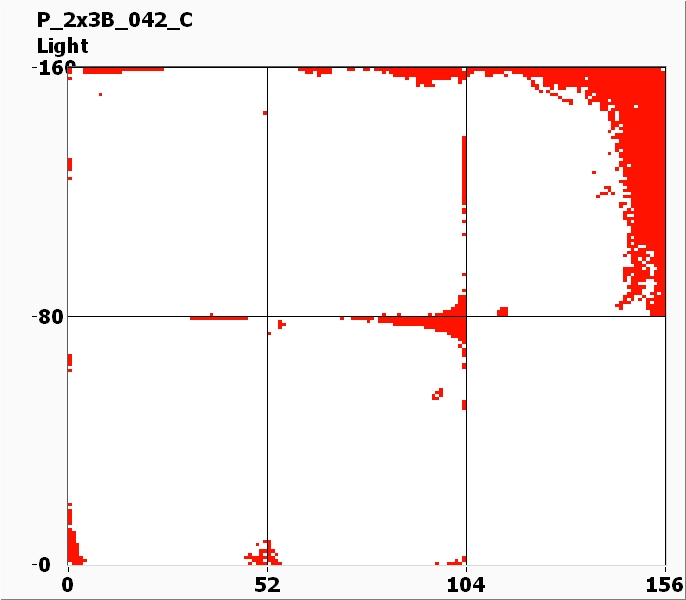

![[IMAGE] of](P_2x3B_042_Cno-bump-light.jpg)
