P_2x3B_041

P_2x3B_041_C

Parts committed by Bolla Gino on date 11/28/2006

Part	ID
BBM	BBM_041-2x3B
VHDI	2x3_201

ROC ROC wafer Label

ROC0 XF4K3JT 22D

ROC1 XF4K3JT 23C

ROC2 XF4K3JT 36A

ROC3 XF4K3JT 35B

ROC4 XF4K3JT 34B

ROC5 XF4K3JT 33B

ROC	ROC wafer	Label
ROC0	XF4K3JT	22D
ROC1	XF4K3JT	23C
ROC2	XF4K3JT	36A
ROC3	XF4K3JT	35B
ROC4	XF4K3JT	34B
ROC5	XF4K3JT	33B

Inspected by Arndt Kirk on date 12/4/2006

LR_dev 0.010

LL_dev 0.032

FINAL COMMENT by Arndt Kirk No assembly problems. BBM joined to VHDI at nominal pressure. No visible deflection of BBM while wirebonding. No wirebonding problems, all wirebonds look good.

PLAQUETTE made READY for testing on 12/4/2006 by Arndt Kirk

P_2x3B_041_Con 12/5/2006 9:26 AM P_2x3B_041_C-1on 12/6/2006 12:11 PM

PLAQUETTE TESTED on 2006-12-06 by Petra Merkel

IV_XML-File

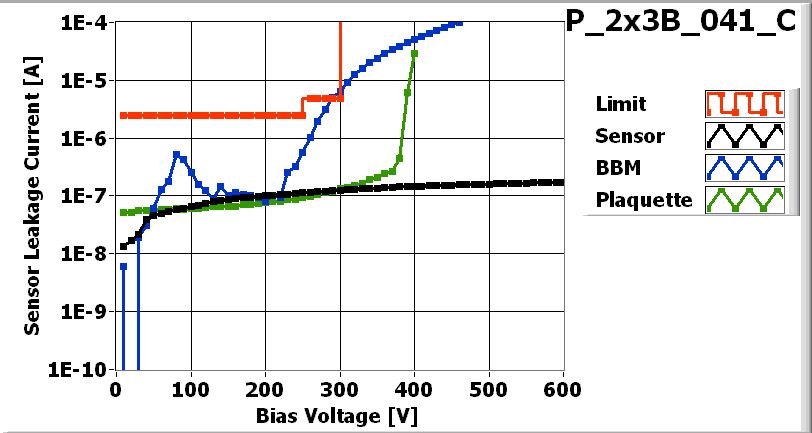

Maximum Voltage 400 V

LASER_XML-File

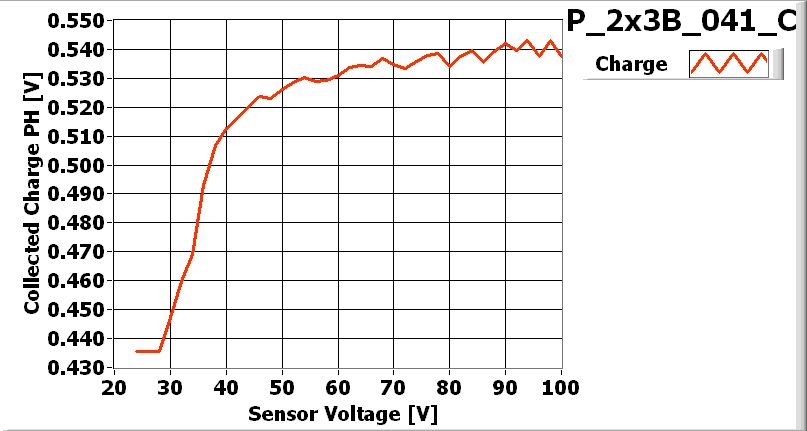

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5

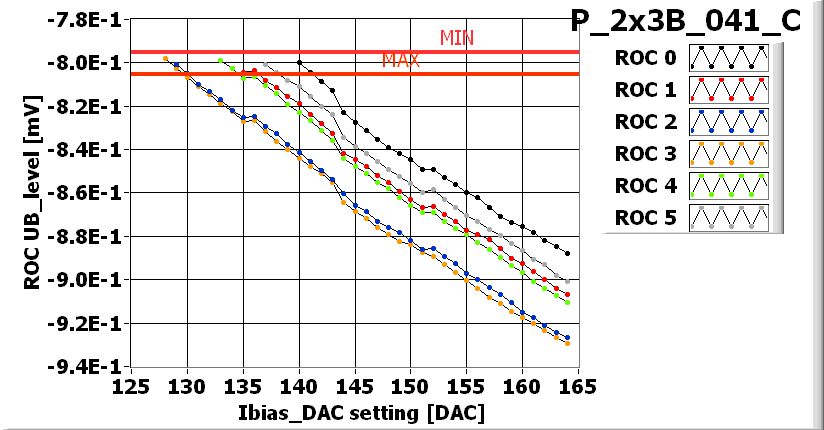

Ibias_DAC	140	135	129	128	133	137

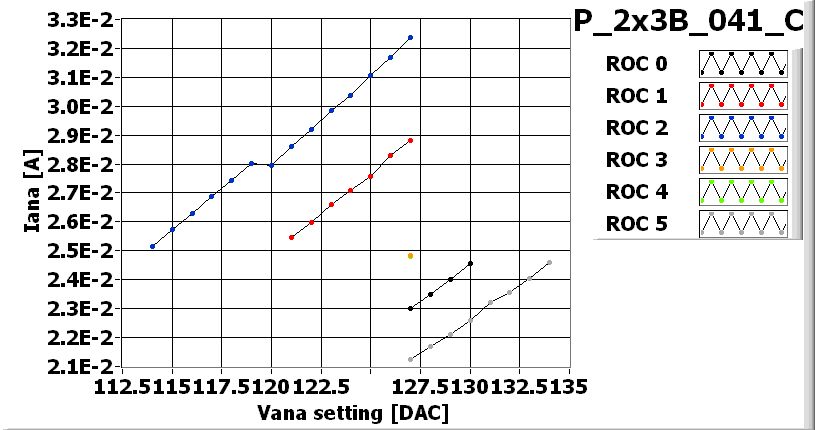

Vana	130	121	114	127	127	134
Cal_Del	87	99	99	92	77	87
Vthrs_Comp	68	68	62	68	72	74

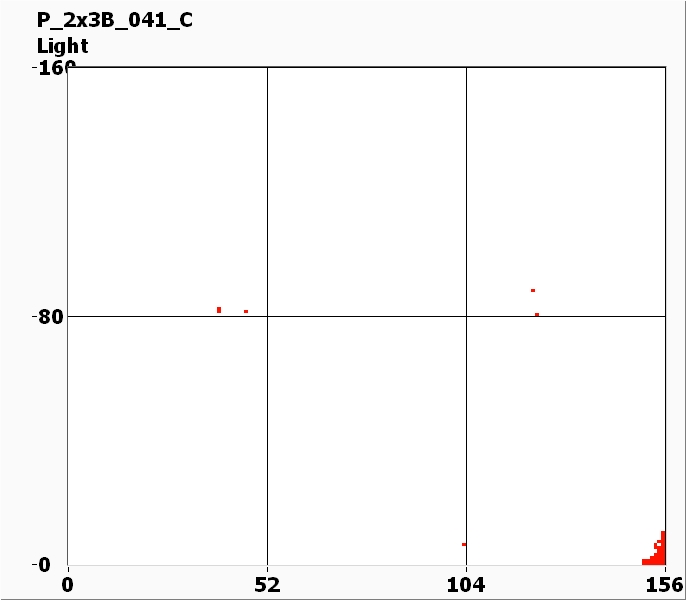

Unbumped	0	1	31	2	0	3
Dead	0	0	0	0	1	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	1	31	2	1	3

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-12-13
