P_2x3B_019

P_2x3B_019_A

Production testing

Date:11/29/2007

Operator: Gino Bolla

start testing time:1:39 PM

Sensor: S_2x3B_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W53_DXLQG9T 66A

ROC1 W47_DXLQG9T 65D

ROC2 W47_DXLQG9T 65B

ROC3 W55_D3LQG9T 46D

ROC4 W55_D3LQG9T 47C

ROC5 W55_D3LQG9T 48A

ROC	ROC wafer	Label
ROC0	W53_DXLQG9T	66A
ROC1	W47_DXLQG9T	65D
ROC2	W47_DXLQG9T	65B
ROC3	W55_D3LQG9T	46D
ROC4	W55_D3LQG9T	47C
ROC5	W55_D3LQG9T	48A

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 154 156 144 164 146 150

Vana, VanaData 143 166 144 150 158 145

CalDelData and plots 78 79 99 86 82 82

VthrCompData and plots 91 91 75 88 91 86

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

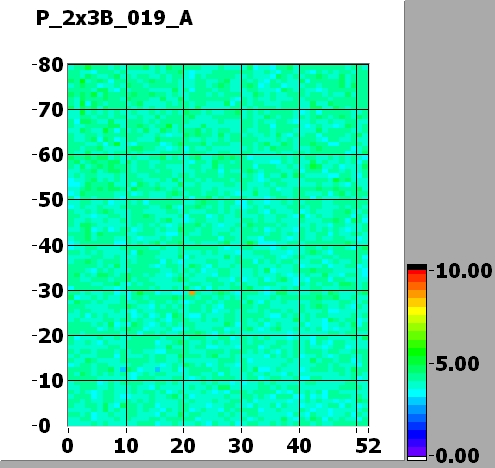

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	110	90	90	95	95
Vsf	145	165	145	145	155	145
VoffsetOp	110	130	90	120	90	105
VIbias_PH	100	100	95	100	105	95

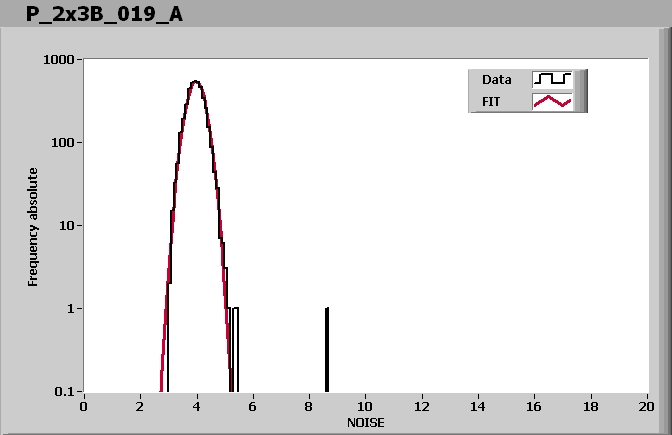

ROC0 NOISE			MEAN = 3.968061 SIGMA = 0.299998

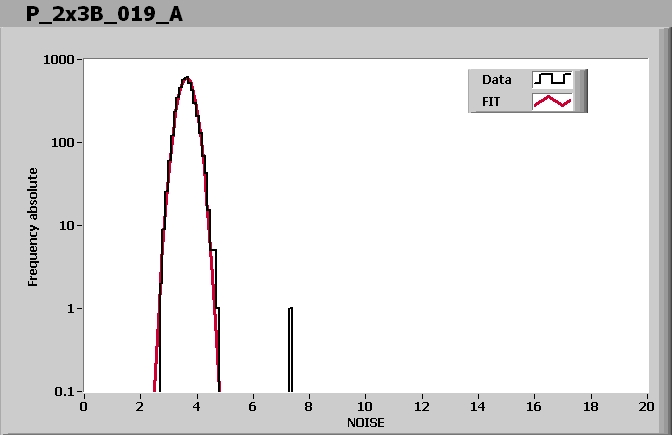

ROC1 NOISE			MEAN = 3.632966 SIGMA = 0.276364

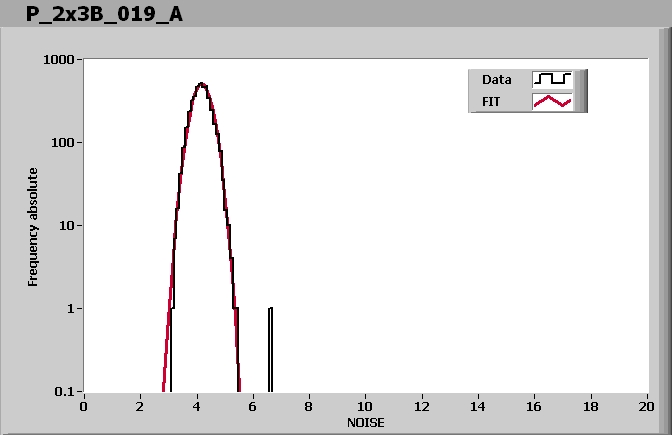

ROC2 NOISE			MEAN = 4.171792 SIGMA = 0.328900

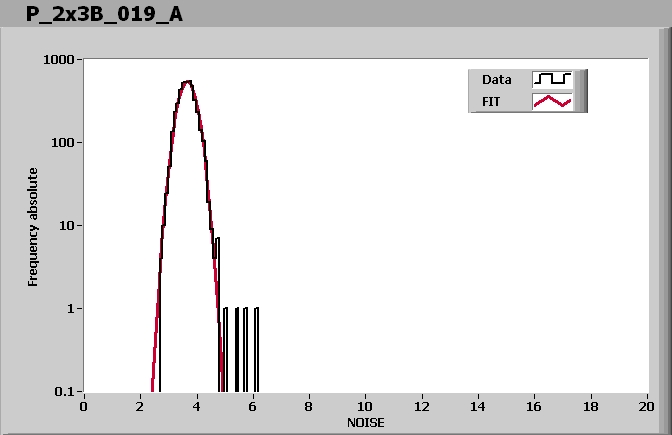

ROC3 NOISE			MEAN = 3.660959 SIGMA = 0.302637
ROC4 NOISE			MEAN = 4.665429 SIGMA = 0.357254
ROC5 NOISE			MEAN = 3.832685 SIGMA = 0.305545

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:03 PM

Ibias_DAC, Ibias_DAC Data	154	156	144	164	146	150
Vana, VanaData	143	166	144	150	158	145
CalDelData and plots	78	79	99	86	82	82
VthrCompData and plots	91	91	75	88	91	86
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
